SLSE14-300Q8 Banner Safety Light Curtains
Part#:SLSE14-300Q8
Manufacturer:Banner
Alt. Part#:72360
Product Lifecycle:Active
Get a quick Quote!

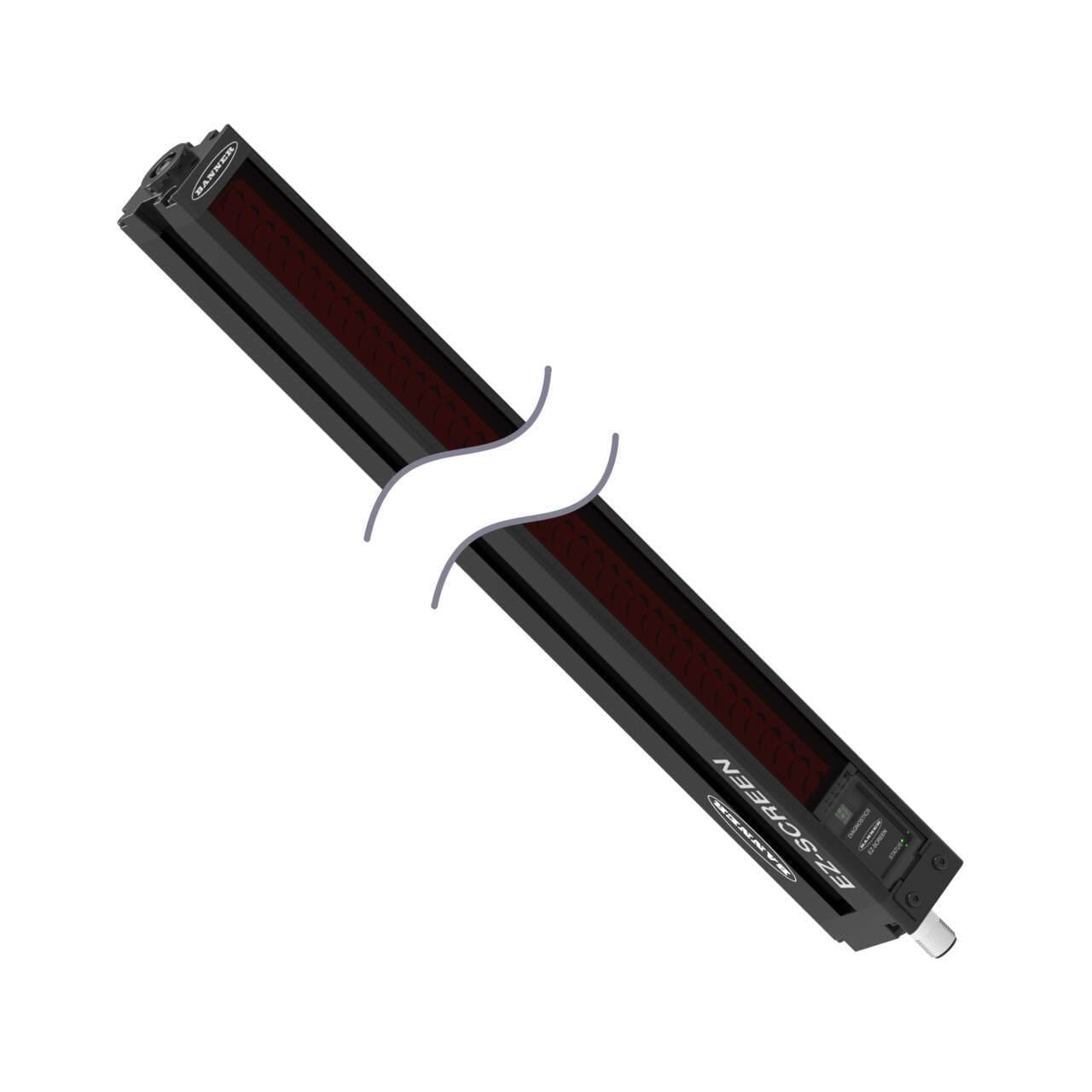

EZ-SCREEN Emitter; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 300 mm (11.8 in); Housing Length: 372 mm (14.6 in); Connection: 8-pin M12 Connector; No test input
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLSE14-300Q8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight1560.35648 g
- Country Of OriginMX
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Number of Pins (Receiver/Emitter) 8
- Defined Area Height (mm) 300
- PL Rating Ple
- Scan Code Selectable
- Trip/Latch Output N/A
- low-profile No
- Operating Distance (m) 0.1 - 6
- SIL Rating SIL3; CL3
- Housing Material Aluminum; Zinc; Acrylic
- Connector Type M12
- Housing Finish Yellow Polyester
- Reduced Resolution No
- Fault Output No
- Safety Level Type 4
- IP Rating IP65
- Electrical Safety Class III
- OSSD Rating N/A
- Primary Housing Material Aluminum
- Overall Length (mm) 372
- Recovery Time 33-220 / 109-800
- System Type Emitter
- Test Input No
- External Monitoring Device No
- Operating Temperature 0 to +55 deg. C; RH 95%
- Short Protection Yes
- Feature: End-to-End Sensing No
- Dimensions WxD (mm) 36 x 45.2
- Operating Voltage 24 V dc +/- 15%
- Shock 10g at 16ms (6000 cycles)
- Fixed Blanking No
- Resolution (mm) 14
- Vibration 10-55 Hz at 0.35 mm
- Feature: ESD Safe No
- Response Time 15
- Auxiliary Output No
- Supply Current 100 mA max.
- Feature: Integral Muting No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SLSE14-300Q8 Description
Banner Engineering SLSE14-300Q8 is a safety light curtain designed for protective applications, part of the 14/30 series. This unit, functioning as an emitter alone, is constructed with an aluminium housing, acrylic lens, and die-cast zinc end caps. It features a pre-equipped 8-pin Euro-style M12 connector for connectivity. The device offers a protective height of 300mm and comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. With an IP65 degree of protection, it is safeguarded against dust ingress and low-pressure water jets from any direction. The SLSE14-300Q8 has a net width of 36mm and a net depth of 46mm. It is designed with a 14mm beam spacing/pitch, providing a resolution suitable for finger detection. The safety light curtain features 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), a sensing distance ranging from 10cm to 6m, and operates with an infrared light color at a wavelength of 850 nm. Its response time is 15ms / 0.015 s, ensuring timely activation of safety measures.
Related documents SLSE14-300Q8 Specs
