SLSE30-1200P4NT Banner Safety Light Curtains
Part#:SLSE30-1200P4NT
Manufacturer:Banner
Alt. Part#:85422
Product Lifecycle:Active
Get a quick Quote!

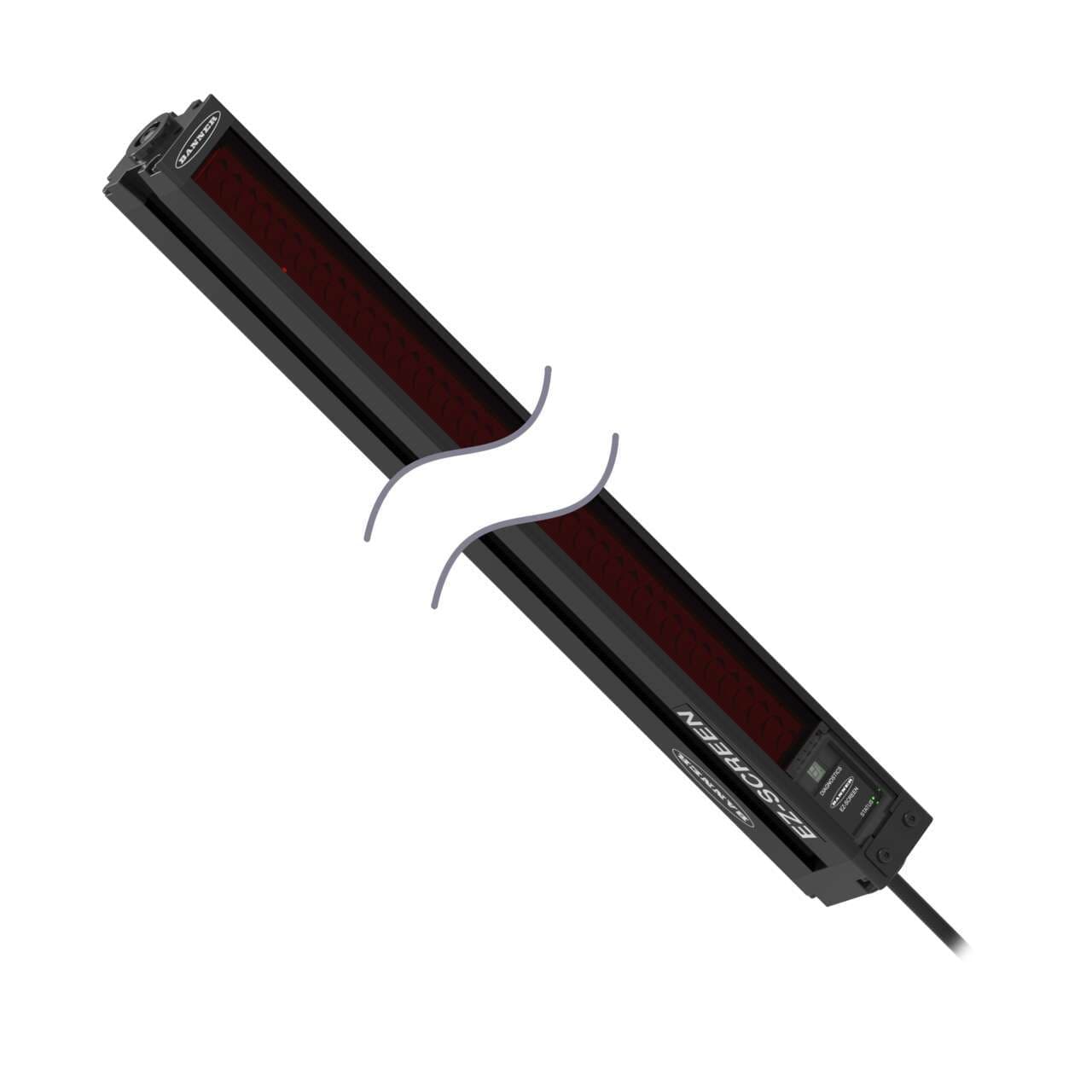

EZ-SCREEN Emitter; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1200 mm (47.2 in); Housing Length: 1270 mm (50.0 in); Connection: 4-pin M12 Pigtail Connector; No test Input
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLSE30-1200P4NT Banner price in the box on the right side or send a quick quote.
Product Details
- Weight4808.0752 g
- Country Of OriginMX
- Connector Type M12 Pigtail (Yellow)
- Dimensions WxD (mm) 36 x 45.2
- Safety Level Type 4
- Effective Aperture Angle Type 4 Per IEC 61496-2
- low-profile No
- IP Rating IP65
- Primary Housing Material Aluminum
- Operating Distance (m) 0.1 - 18
- Short Protection Yes
- Test Input No
- Defined Area Height (mm) 1200
- Operating Temperature 0 to +55 deg. C; RH 95%
- Shock 10g at 16ms (6000 cycles)
- Feature: ESD Safe No
- Overall Length (mm) 1270
- PL Rating Ple
- OSSD Rating N/A
- External Monitoring Device No
- Resolution (mm) 30
- Vibration 10-55 Hz at 0.35 mm
- Feature: Integral Muting No
- Housing Finish Yellow Polyester
- Response Time 23
- System Type Emitter
- Number of Pins (Receiver/Emitter) 4
- SIL Rating SIL3; CL3
- Housing Material Aluminum; Zinc; Acrylic
- Feature: End-to-End Sensing No
- Fixed Blanking No
- Electrical Safety Class III
- Supply Current 100 mA max.
- Recovery Time 25-152 / 81-495
- Fault Output No
- Operating Voltage 24 V dc +/- 15%
- Scan Code Selectable
- Trip/Latch Output N/A
- Reduced Resolution No
- Auxiliary Output No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SLSE30-1200P4NT Description
Banner Engineering SLSE30-1200P4NT is a safety light curtain designed for hand detection with a protective height of 1200mm and features a 30mm beam spacing/pitch. This part of the 14/30 series is constructed with an aluminium housing, acrylic lens, and die-cast zinc end caps, and it comes in a yellow housing. It is pre-wired with a 300mm pigtail that terminates with a 4-pin Euro-style M12 connector. The SLSE30-1200P4NT operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It offers a degree of protection rated at IP65 and has dimensions of 36mm in width, 1270mm in height, and 46mm in depth. The safety light curtain provides two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), has a sensing distance ranging from 10cm to 18m, and operates with an infrared light color at a wavelength of 850 nm. Its response time is 23ms / 0.023 s, and it is designed without a test or ground wire, specifically for safety applications requiring hand detection.
