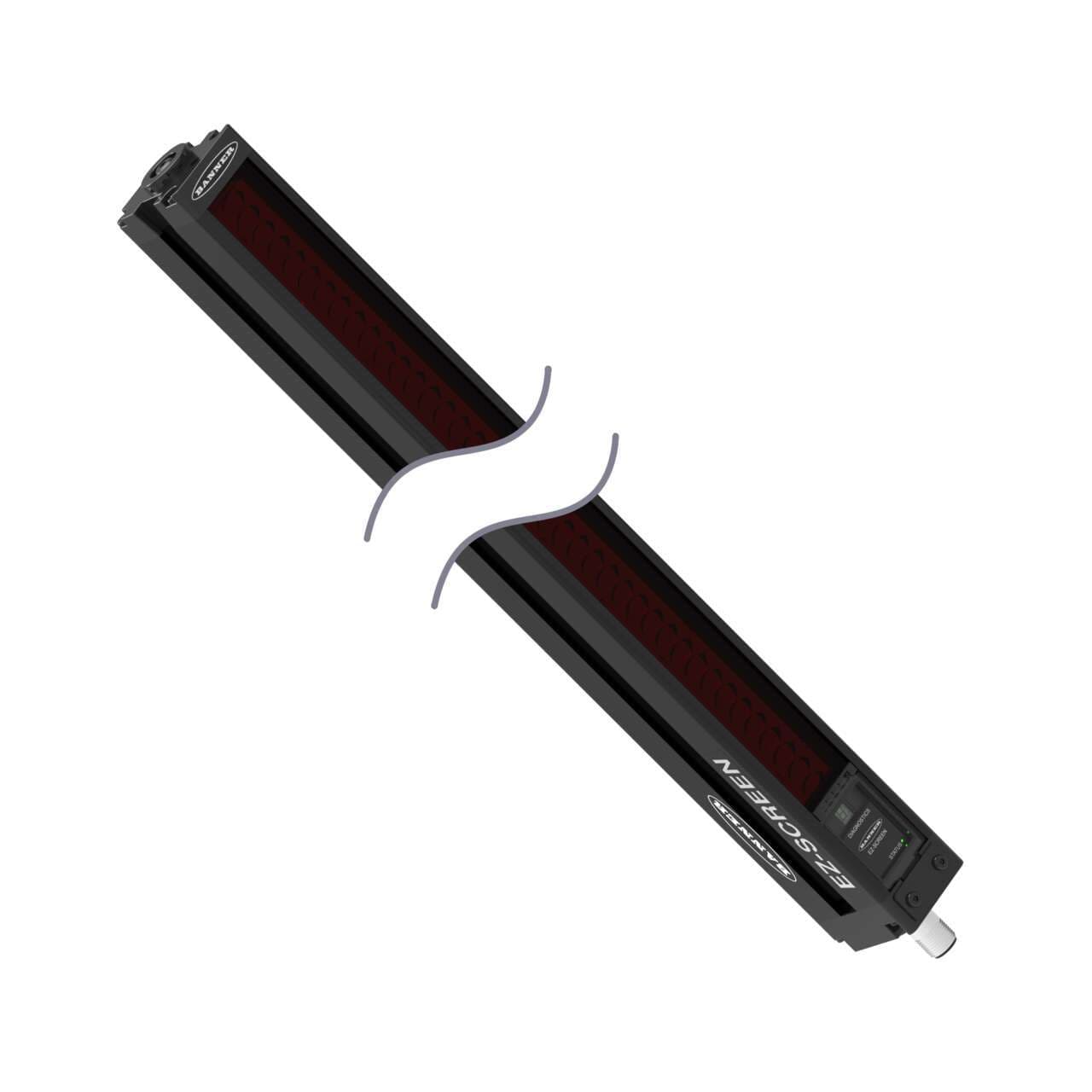

SLSE14-300Q5 Banner Safety Light Curtains
Part#:SLSE14-300Q5
Manufacturer:Banner
Alt. Part#:71213
Product Lifecycle:Active
Get a quick Quote!
EZ-SCREEN Emitter; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 300 mm (11.8 in); Housing Length: 372 mm (14.6 in); Connection: 5-pin M12 Connector; With Test Input
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLSE14-300Q5 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight1133.98 g
- Country Of OriginMX
- Safety Level Type 4
- Electrical Safety Class III
- Supply Current 100 mA max.
- External Monitoring Device No
- Scan Code Selectable
- Resolution (mm) 14
- Fault Output No
- Connector Type M12
- Operating Temperature 0 to +55 deg. C; RH 95%
- Short Protection Yes
- OSSD Rating N/A
- Dimensions WxD (mm) 36 x 45.2
- Operating Voltage 24 V dc +/- 15%
- System Type Emitter
- Defined Area Height (mm) 300
- Operating Distance (m) 0.1 - 6
- Response Time 15
- Feature: End-to-End Sensing No
- Primary Housing Material Aluminum
- IP Rating IP65
- PL Rating Ple
- Vibration 10-55 Hz at 0.35 mm
- Overall Length (mm) 372
- Number of Pins (Receiver/Emitter) 5
- SIL Rating SIL3; CL3
- Shock 10g at 16ms (6000 cycles)
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Fixed Blanking No
- Reduced Resolution No
- Trip/Latch Output N/A
- low-profile No
- Housing Finish Yellow Polyester
- Recovery Time 33-220 / 109-800
- Auxiliary Output No
- Test Input Yes
- Feature: Integral Muting No
- Housing Material Aluminum; Zinc; Acrylic
- Feature: ESD Safe No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SLSE14-300Q5 Description
Banner Engineering SLSE14-300Q5 is a safety light curtain designed for protective applications, part of the 14/30 series. This model features an aluminium housing with an acrylic lens and die-cast zinc end caps, ensuring durability. It is specifically an emitter alone, pre-equipped with a 5-pin Euro-style M12 connector for easy integration. The device offers a protective height of 300mm and comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. With an IP65 degree of protection, it is suitable for various industrial environments. The SLSE14-300Q5 has a net width of 36mm and a depth of 46mm, featuring 14mm beam spacing/pitch for finger detection. It includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and 1 x digital input (10Vdc-30Vdc) for remote test input. The sensing distance ranges from 10cm to 6m, with a response time of 15ms / 0.015 s. The light emitted is infrared (IR) with a wavelength of 850 nm, ensuring precise detection within the specified resolution of 14mm.
Related documents SLSE14-300Q5 Specs
