EDS-2008-EL-M-SC Moxa Networking Switches

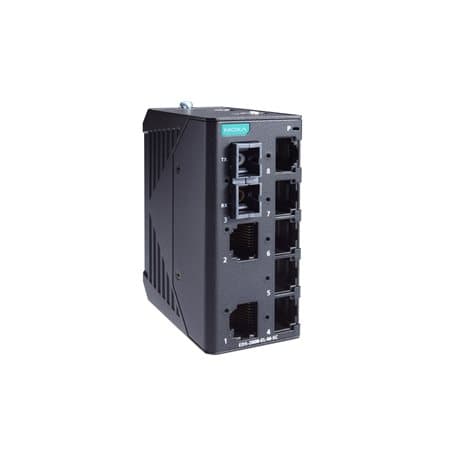

Moxa EDS-2008-EL-M-SC Unmanaged Fast Ethernet switch with 7 10/100BaseT(X) ports, 1 100BaseFX multi-mode port with SC connectors, 12/24/48 power input, metal housing, -10 to 60°C operating temperature
Moxa

Part#:EDS-2008-EL-M-SC

Manufacturer:Moxa

Product Lifecycle:Active

Get a quick Quote!

Unmanaged Fast Ethernet switch with 7 10/100BaseT(X) ports, 1 100BaseFX multi-mode port with SC connectors, 12/24/48 power input, metal housing, -10 to 60°C operating temperature

Check out the EDS-2008-EL-M-SC Moxa price in the box on the right side or send a quick quote.

Product Details

  • 100BaseFX Ports (multi-mode SC connector)
    EDS-2008-EL-M-SC: 1
  • Weight
    163 g (0.36 lb)
  • Operating Temperature
    EDS-2008-EL/EDS-2008-EL-M-SC/EDS-2008-EL-M-ST: -10 to 60°C (14 to 140°F); EDS-2008-EL-T/EDS-2008-EL-M-SC-T/EDS-2008-EL-M-ST-T: -40 to 75°C (-40 to 167°F)
  • Dimensions
    EDS-2008-EL: 36 x 81 x 65 mm (1.4 x 3.19 x 2.56 in); EDS-2008-EL-M-ST: 36 x 81 x 70.9 mm (1.4 x 3.19 x 2.79 in) (w/ connector); EDS-2008-EL-M-SC: 36 x 81 x 68.9 mm (1.4 x 3.19 x 2.71 in) (w/ connector)
  • Shock
    IEC 60068-2-27
  • MAC Table Size
    2 K
  • Input Current
    EDS-2008-EL: 0.067A @ 24 VDC; EDS-2008-EL-M-ST/EDS-2008-EL-M-SC: 0.105A @ 24 VDC
  • EMI
    CISPR 22, 32, FCC Part 15B Class A
  • Processing Type
    Store and Forward
  • Housing
    Metal
  • EMC
    EN 55032/35; EN 61000-6-2/-6-4
  • Ethernet Interface
    Quality of Service (QoS), Broadcast Storm Protection (BSP)
  • Operating Voltage
    9.6 to 60 VDC
  • Vibration
    IEC 60068-2-6
  • 100BaseFX Ports (multi-mode ST connector)
    EDS-2008-EL-M-ST: 1
  • Installation
    DIN-rail mounting; Wall mounting (with optional kit)
  • Safety
    UL 61010-2-201; EN 62368-1 (LVD)
  • Standards
    IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X) and 100BaseFX; IEEE 802.3x for flow control; IEEE 802.1p for Class of Service
  • Ambient Relative Humidity
    5 to 95% (non-condensing)
  • Freefall
    IEC 60068-2-32
  • Packet Buffer Size
    768 kbits
  • Reverse Polarity Protection
    Supported
  • Time
    3,382,651 hrs
  • Warranty Period
    5 years
  • Connection
    1 removable 2-contact terminal block(s)
  • Overload Current Protection
    Supported
  • EMS
    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV; IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV; IEC 61000-4-6 CS: 10 V; IEC 61000-4-8 PFMF
  • 10/100BaseT(X) Ports (RJ45 connector)
    EDS-2008-EL: 8; EDS-2008-EL-M-ST: 7; EDS-2008-EL-M-SC: 7; Full/Half duplex mode; Auto MDI/MDI-X connection; Auto negotiation speed
  • Input Voltage
    12/24/48 VDC
  • Storage Temperature (package included)
    -40 to 85°C (-40 to 185°F)

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents EDS-2008-EL-M-SC Specs

EDS-2008-EL-M-SC DataSheet.pdf

1-year warranty
