EDS-516A Moxa Networking Switches

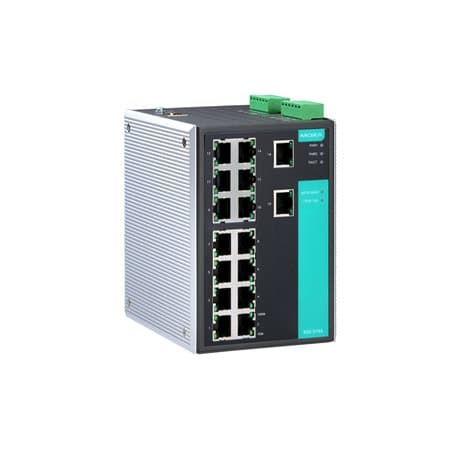

Moxa EDS-516A Managed Ethernet switch with 16 10/100BaseT(X) ports, 0 to 60°C operating temperature
Moxa

Part#:EDS-516A

Manufacturer:Moxa

Product Lifecycle:Active

Get a quick Quote!

Managed Ethernet switch with 16 10/100BaseT(X) ports, 0 to 60°C operating temperature

Check out the EDS-516A Moxa price in the box on the right side or send a quick quote.

Product Details

  • Security
    HTTPS/SSL, RADIUS, TACACS+, Port Lock, SSH, Broadcast storm protection
  • Reverse Polarity Protection
    Supported
  • Hazardous Locations
    ATEX, Class I Division 2
  • Filter
    802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN
  • Max. No. of VLANs
    64
  • Connection
    2 removable 6-contact terminal block(s)
  • Freefall
    IEC 60068-2-31
  • Alarm Contact Channels
    Resistive load: 1 A @ 24 VDC
  • Console Port
    RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)
  • Housing
    Metal
  • Safety
    EN 60950-1, UL 60950-1, CSA C22.2 No. 60950-1, UL 508
  • Warranty Period
    5 years
  • Digital Inputs
    +13 to +30 V for state 1; -30 to +3 V for state 0; Max. input current: 8 mA
  • MAC Table Size
    8 K
  • IP Rating
    IP30
  • Installation
    DIN-rail mounting, Wall mounting (with optional kit)
  • Shock
    IEC 60068-2-27
  • Standards
    IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X) and 100BaseFX; IEEE 802.1X for authentication; IEEE 802.1D-2004 for Spanning Tree Protocol; IEEE 802.1w for Rapid Spanning Tree Protocol; IEEE 802.1s for Multiple Spanning Tree Protocol; IEEE 802.1Q for
  • VLAN ID Range
    VID 1 to 4094
  • Overload Current Protection
    Supported
  • EMC
    EN 55032/24
  • Management
    IPv4/IPv6, SNMPv1/v2c/v3, LLDP, Port Mirror, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, RARP, RMON, SMTP, SNMP Inform, Syslog, Telnet, TFTP
  • Time Management
    NTP Server/Client, SNTP, IEEE 1588v2 PTP (software-based)
  • LED Indicators
    PWR1, PWR2, FAULT, 10/100M (TP port), 100M (fiber port), MSTR/HEAD, CPLR/TAIL
  • Weight
    1586 g (3.50 lb)
  • Storage Temperature (package included)
    -40 to 85°C (-40 to 185°F)
  • Time
    247,676 hrs
  • 10/100BaseT(X) Ports (RJ45 connector)
    16; Auto negotiation speed; Full/Half duplex mode; Auto MDI/MDI-X connection
  • Ethernet Interface
    Turbo Ring, Master, Coupler, Reserve
  • Maritime
    DNV-GL
  • Redundancy Protocols
    STP, MSTP, RSTP, LACP, Link Aggregation, Turbo Chain, Turbo Ring v1/v2
  • IGMP Groups
    256
  • Input Voltage
    24 VDC, Redundant dual inputs
  • Dimensions
    94 x 135 x 142.7 mm (3.7 x 5.31 x 5.62 in)
  • EMS
    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV; IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV; IEC 61000-4-6 CS: 10 V; IEC 61000-4-8 PFMF
  • MIB
    MIB-II, Bridge MIB, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
  • Priority Queues
    4
  • Input Current
    0.35 A @ 24 VDC
  • Operating Temperature
    0 to 60°C (32 to 140°F)
  • Vibration
    IEC 60068-2-6
  • Industrial Protocols
    EtherNet/IP, Modbus TCP
  • Packet Buffer Size
    2 Mbits
  • Operating Voltage
    12 to 45 VDC
  • Ambient Relative Humidity
    5 to 95% (non-condensing)
  • EMI
    CISPR 32, FCC Part 15B Class A

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents EDS-516A Specs

EDS-516A DataSheet.pdf
