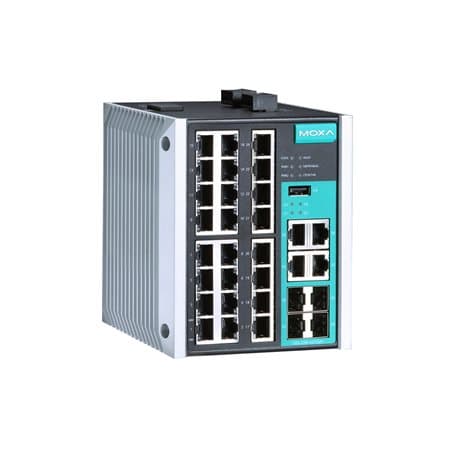

EDS-528E-4GTXSFP-LV Moxa Networking Switches
Part#:EDS-528E-4GTXSFP-LV
Manufacturer:Moxa
Product Lifecycle:Active
Get a quick Quote!
Managed Gigabit Ethernet switch with 24 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, dual 12/24/48/-48 VDC power inputs, -10 to 60°C operating temperature
Check out the EDS-528E-4GTXSFP-LV Moxa price in the box on the right side or send a quick quote.
Product Details
- Buttons Reset button
- Max. No. of VLANs 64
- Operating Voltage 9.6 to 60 VDC
- Dimensions 115.4 x 135 x 137 mm (4.54 x 5.31 x 5.39 in)
- Warranty Period 5 years
- Digital Input Channels 1
- Industrial Protocols EtherNet/IP; Modbus TCP; PROFINET IO Device
- Priority Queues 4
- IP Rating IP30
- Power Substation IEC 61850-3; IEEE 1613
- Filter 802.1Q VLAN; BPDU Filter; BPDU Guard; GMRP; GVRP; IGMP v1/v2/v3; Port-based VLAN
- Redundancy Protocols Link Aggregation; MRP; MSTP; RSTP; STP; Turbo Chain; Turbo Ring v1/v2
- Console Port USB-serial console (Type B connector)
- Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
- Vibration IEC 60068-2-6
- 10/100/1000BaseT(X) Ports (RJ45 connector) Auto negotiation speed; Full/Half duplex mode; Auto MDI/MDI-X connection
- IGMP Groups 2048
- Input Voltage 12/24/48/-48 VDC; Redundant dual inputs
- Housing Metal
- Time 774,634 hrs
- Digital Inputs +13 to +30 V for state 1; -30 to +3 V for state 0; Max. input current: 8 mA
- Alarm Contact Channels 1; Relay output with current carrying capacity of 1 A @ 24 VDC
- Security Broadcast storm protection; HTTPS/SSL; TACACS+; SNMPv3; MAB authentication; Sticky MAC; NTP authentication; MAC ACL; Port Lock; RADIUS; SSH; SMTP with TLS
- Packet Buffer Size 1 Mbits
- Connection 2 removable 4-contact terminal block(s)
- Reverse Polarity Protection Supported
- Installation DIN-rail mounting; Wall mounting (with optional kit)
- EMS IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m; IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV; IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV; IEC 61000-4-6 CS: 10 V; IEC 61000-4-8 PFMF
- EMC EN 61000-6-2/-6-4
- Shock IEC 60068-2-27
- 10/100BaseT(X) Ports (RJ45 connector) 24; Auto negotiation speed; Full/Half duplex mode; Auto MDI/MDI-X connection
- Management LLDP; Back Pressure Flow Control; BOOTP; Port Mirror; DHCP Option 66/67/82; DHCP Server/Client; Fiber check; Flow control; IPv4/IPv6; RARP; RMON; SCP; SMTP; SNMP Inform; SNMPv1/v2c/v3; Syslog; Telnet; TFTP
- MAC Table Size 16 K
- VLAN ID Range VID 1 to 4094
- DIP Switches Turbo Ring, Master, Coupler, Reserve
- Overload Current Protection Supported
- EMI CISPR 32, FCC Part 15B Class A
- Ambient Relative Humidity 5 to 95% (non-condensing)
- Railway EN 50121-4
- Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+) 4
- MIB Ethernet-like MIB; MIB-II; Bridge MIB; P-BRIDGE MIB; Q-BRIDGE MIB; RMON MIB Groups 1, 2, 3, 9; RSTP MIB
- Storage Port USB Type A
- Weight 1850 g (4.08 lb)
- Safety UL 61010-2-201; EN 60950-1 (LVD)
- Standards IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X) and 100BaseFX; IEEE 802.3ab for 1000BaseT(X); IEEE 802.3z for 1000BaseSX/LX/LHX/ZX; IEEE 802.3x for flow control; IEEE 802.1D-2004 for Spanning Tree Protocol; IEEE 802.1w for Rapid Spanning Tree Protocol
- Time Management NTP Server/Client; SNTP
- LED Indicators PWR1, PWR2 (LV model), STATE, FAULT, 10/100M (TP port), Gigabit combo port, MSTR/HEAD, CPLR/TAIL
- Input Current 0.47 A @ 24 VDC
- Operating Temperature -10 to 60°C (14 to 140°F)
- Freefall IEC 60068-2-32
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents EDS-528E-4GTXSFP-LV Specs
