EDS-316 Moxa Networking Switches
Part#:EDS-316
Manufacturer:Moxa
Product Lifecycle:Active
Get a quick Quote!

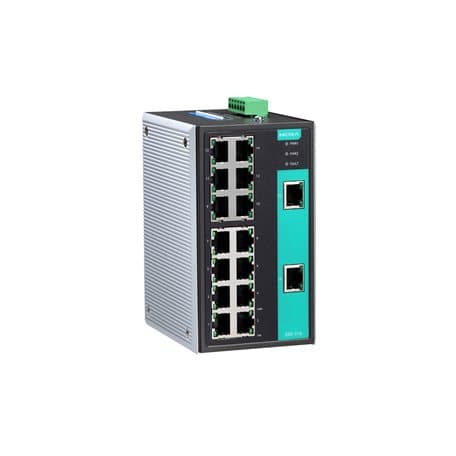

Unmanaged Ethernet switch with 16 10/100BaseT(X) ports, relay output warning, -10 to 60°C operating temperature
Check out the EDS-316 Moxa price in the box on the right side or send a quick quote.
Product Details
- 10/100BaseT(X) Ports (RJ45 connector) 16; Auto negotiation speed; Full/Half duplex mode; Auto MDI/MDI-X connection
- Ambient Relative Humidity 5 to 95% (non-condensing)
- Safety EN 62368-1 (LVD); UL 508; UL 60950-1; CSA C22.2 No. 60950-1
- Packet Buffer Size 1.25 Mbits
- Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
- Freefall IEC 60068-2-32
- Alarm Contact Channels 1 relay output with current carrying capacity of 1 A @ 24 VDC
- IP Rating IP30
- EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m; IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV; IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV; IEC 61000-4-6 CS: 10 V; IEC 61000-4-8 PFMF
- Operating Voltage 9.6 to 60 VDC
- Reverse Polarity Protection Supported
- EMI CISPR 32, FCC Part 15B Class A
- MAC Table Size 4 K
- Weight 1140 g (2.52 lb)
- Hazardous Locations ATEX; Class I Division 2; IECEx
- Standards IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X) and 100BaseFX; IEEE 802.3x for flow control
- Operating Temperature -10 to 60°C (14 to 140°F)
- EMC EN 55032/35
- Shock IEC 60068-2-27
- Input Current 0.34 A @ 24 VDC
- Overload Current Protection Supported
- Dimensions 80.1 x 135 x 105 mm (3.15 x 5.31 x 4.13 in)
- Time 2,226,219 hrs
- Processing Type Store and Forward
- Housing Metal
- Ethernet Interface Port break alarm
- Installation DIN-rail mounting; Wall mounting (with optional kit)
- Warranty Period 5 years
- Maritime DNV
- Connection 1 removable 6-contact terminal block(s)
- Input Voltage 12/24/48 VDC; Redundant dual inputs
- Vibration IEC 60068-2-6
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents EDS-316 Specs
1-year warranty
