EDS-205 Moxa Networking Switches
Part#:EDS-205
Manufacturer:Moxa
Product Lifecycle:Active
Get a quick Quote!

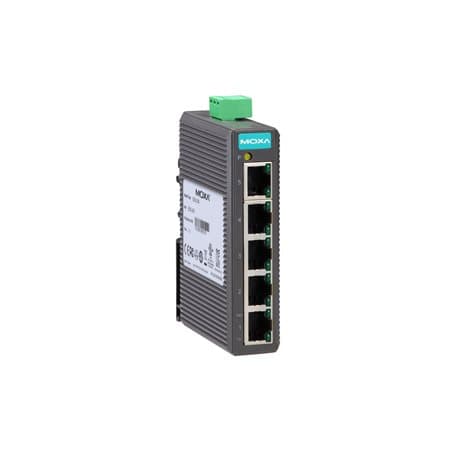

Entry-level unmanaged Ethernet switch with 5 10/100BaseT(X) ports, plastic housing, -10 to 60°C operating temperature
Check out the EDS-205 Moxa price in the box on the right side or send a quick quote.
Product Details
- Operating Voltage 12 to 48 VDC
- Installation DIN-rail mounting
- Time 3,915,945 hrs
- Dimensions 24.9 x 100 x 86.5 mm (0.98 x 3.94 x 3.41 in)
- Safety EN 60950-1; UL 508; EN 62368-1 (LVD)
- Standards IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X); IEEE 802.3x for flow control
- Housing Plastic
- Operating Temperature -10 to 60°C (14 to 140°F)
- MAC Table Size 1 K
- Connection 1 removable 3-contact terminal block(s)
- IP Rating IP30
- Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
- Shock IEC 60068-2-27
- Freefall IEC 60068-2-31
- Processing Type Store and Forward
- Reverse Polarity Protection Supported
- Vibration IEC 60068-2-6
- Packet Buffer Size 512 kbits
- EMC EN 55032/35
- Input Current 0.11 A @ 24 VDC
- Ambient Relative Humidity 5 to 95% (non-condensing)
- 10/100BaseT(X) Ports (RJ45 connector) Full/Half duplex mode; Auto MDI/MDI-X connection; Auto negotiation speed
- Weight 135 g (0.30 lb)
- Warranty Period 5 years
- Input Voltage 24 VDC
- EMI CISPR 32, FCC Part 15B Class A
- Overload Current Protection 1.1 A @ 24 VDC
- EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m; IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV; IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV; IEC 61000-4-6 CS: 3 V; IEC 61000-4-8 PFMF
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents EDS-205 Specs
