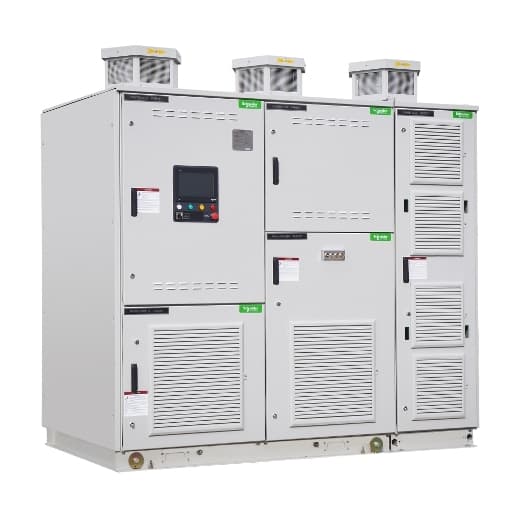

ATV6000C308A4242NA3 Schneider Electric Electronic Components

Product Details

• Device Short Name
  ATV6000
• Phase
  3 phase
• Colour Of Enclosure
  Light grey (RAL 7035)
• Prospective Line Isc
  31.5 kA 150 ms
• Maximum THDI
  <3 % conforming to IEEE 519-1992
• Volume Of Cooling Air
  4949193.52 Gal/hr(US) (18734.4 m3/h)
• Assembly Style
  In floor-standing enclosure
• Input Type
  24 pulse diode rectifier bridge
• Net Weight
  22535.67 lb(US) (10222.0 kg)
• Communication Port Protocol
  Ethernet IP/Modbus TCP
• Product Specific Application
  Process and utilities
• [Us] Rated Supply Voltage
  4.16 kV +/- 10 %
• Depth
  62.99 in (1600.0 mm)
• Product Or Component Type
  Medium voltage variable speed drive
• Supply Frequency
  50 Hz +/- 5 %
• Speed Drive Output Frequency
  0.5…120 Hz
• Width
  199.21 in (5060.0 mm)
• Display Type
  10 inch LCD touch screen multi-language
• Discrete Input Number
  10
• Type Of Cooling
  Forced convection
Output Voltage
<= power supply voltage
Power Factor
96
Cable Entry
Bottom
Noise Level
80 dB
Discrete Output Type
Logic output <= 30 V DC 100 mA
Range Of Product
Altivar Process ATV6000
Output Type
IGBT inverter cells multilevel PWM
Apparent Power
3080 kVA
Height
108.31 in (2751.0 mm)
Discrete Output Number
2
IP Degree Of Protection
IP31 conforming to IEC 60529
Frequency Resolution
0.01 Hz
Analogue Output Number
2
Isolation
Electrical between power and control
Relay Output Number
3
Energy Efficiency Ratio
0.985 inverter 0.96 total drive including transformer
Line Current
341 A heavy duty 428 A normal duty
Motor Power Kw
1970 kW heavy duty 2460 kW normal duty
Maximum Transient Current
615 A 3 s heavy duty) 615 A 3 s normal duty)
Continuous Output Current
328 A heavy duty 410 A normal duty
Analogue Output Type
Configurable voltage 0...10 V DC 470 Ohm 10 bits Configurable current 0...20 mA 500 Ohm 10 bits
Connector Type
2 RJ45 (on the control block) for Ethernet IP/Modbus TCP 1 RJ45 (on the control block) for Modbus serial
EMC Filter
Integrated conforming to EN/IEC 61800-3 category C3 control Integrated conforming to EN/IEC 61800-3 category C4 power
Analogue Input Type
configurable voltage: 0...10 V DC, impedance: 30 kOhm, resolution: 12 bits configurable current: 0...20 mA, impedance: 250 Ohm, resolution: 12 bits
Power Losses
104.7 kW normal duty 83.8 kW heavy duty
Product Destination
Synchronous motors Permanent magnet motors Asynchronous motors
Synchronous Motor Control Profile
Permanent magnet motor Vector control Synchronous motor with external exitation
Overvoltage Category
II conforming to EN/IEC 61800-5-1 motor side III conforming to EN/IEC 61800-5-1 line side III conforming to EN/IEC 61800-5-1 low voltage connections
Discrete Input Type
DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm DI7, DI8 programmable as pulse input 0…30 kHz, 24 V DC <= 30 V) POEA, POEB PWM output enable, 24 V DC (<= 30 V), impedance: > 2.2 kOhm
Relay Output Type
Configurable relay logic R1: fault relay NO/NC Configurable relay logic R2: sequence relay NO Configurable relay logic R3: sequence relay NO
Supply
Internal supply for digital inputs and PoE 24 V DC 21…27 V, <200 mA overload and short-circuit protection Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection External supply
Cable Cross Section
0.19 in² (120 mm²) line heavy duty 0.29 in² (185 mm²) line normal duty 0.29 in² (185 mm²) 2 motor normal duty 0.19 in² (120 mm²) 2 motor heavy duty
Permissible Temporary Current Boost
1.2 x In during 60 s (normal duty) 1.5 x In during 3 s (normal duty) 1.5 x In during 60 s (heavy duty) 1.8 x In during 3 s (heavy duty)
Electrical Connection
M10 bar for main supply M10 bar for motor Terminal, clamping capacity: 0.25...2.5 mm² for control Terminal, clamping capacity: 1.5...16 mm² for cooling fan
Asynchronous Motor Control Profile
Closed loop vector control Dynamic energy saving Constant torque standard Sensorless flux vector control Variable torque standard
Option Card
Slot A communication module Profibus DP V1 Slot A communication module Profinet Slot A communication module DeviceNet Slot A communication module CANopen daisy chain RJ45 Slot A communication module CANopen SUB-D 9 Slot A communic
Provided Equipment
Plinth Enclosure Cooling fans Human machine interface Medium voltage arrestors Phase-shifting transformer Power cells
Protection Type
Line supply overvoltage drive Line supply undervoltage drive Line supply phase loss drive Overvoltages on the DC bus drive Thermal overload for transformer: drive Cabinet overheating: drive Overcurrent drive Overload: dr
