ATV630U30M3 Schneider Electric Industrial Automation Components

Name: ATV630U30M3
Brand: Schneider Electric

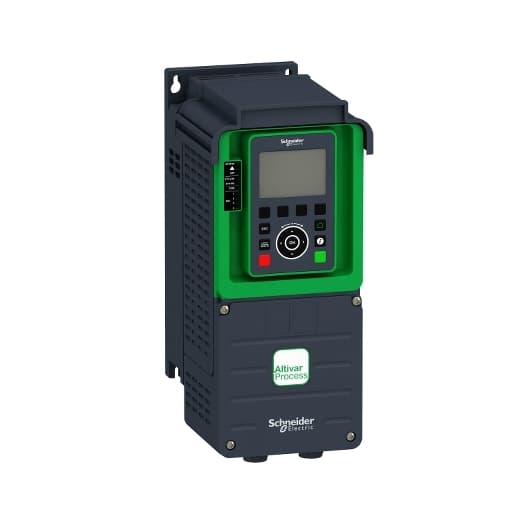

Schneider Electric ATV630U30M3 Schneider Electric ATV630U30M3 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar Process 630 series designed for variable and constant load torque applications. It features STO (Safe Torque Off up to SIL3), optimized torque mode for PM (permanent magnet) motors, sensorless estimated flow rate, and accurate measurement including installation energy drift detection. This model is ATEX compliant, operates on a supply voltage of 170-264Vac, and offers dimensions of H350mm x W144mm x D203mm with an IP21 UL type 1 degree of protection. It supports a rated current of 13.7A in normal-duty at 4kHz and 11.2A in heavy-duty at 4kHz, with maximum currents of 15.1A (normal-duty; for 60s) and 16.8A (heavy-duty; for 60s) respectively. Wall mounting is the prescribed mounting mode. Communication is facilitated through Modbus, Modbus TCP, and Ethernet on a 3-phase network with an output frequency range of 0.1-500 Hz. It includes 2 analog outputs, 7 digital inputs with programmable and pulse input options, and 3 digital outputs. The analog inputs are versatile, supporting multiple signal types. The current consumption varies with voltage and duty, and the rated active power is 3kW for normal-duty and 2.2kW for heavy-duty, equivalent to 3HP in heavy-duty applications.

Part#:ATV630U30M3

Manufacturer:Schneider Electric

Product Lifecycle:Active

Get a quick Quote!

Schneider Electric ATV630U30M3 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar Process 630 series designed for variable and constant load torque applications. It features STO (Safe Torque Off up to SIL3), optimized torque mode for PM (permanent magnet) motors, sensorless estimated flow rate, and accurate measurement including installation energy drift detection. This model is ATEX compliant, operates on a supply voltage of 170-264Vac, and offers dimensions of H350mm x W144mm x D203mm with an IP21 UL type 1 degree of protection. It supports a rated current of 13.7A in normal-duty at 4kHz and 11.2A in heavy-duty at 4kHz, with maximum currents of 15.1A (normal-duty; for 60s) and 16.8A (heavy-duty; for 60s) respectively. Wall mounting is the prescribed mounting mode. Communication is facilitated through Modbus, Modbus TCP, and Ethernet on a 3-phase network with an output frequency range of 0.1-500 Hz. It includes 2 analog outputs, 7 digital inputs with programmable and pulse input options, and 3 digital outputs. The analog inputs are versatile, supporting multiple signal types. The current consumption varies with voltage and duty, and the rated active power is 3kW for normal-duty and 2.2kW for heavy-duty, equivalent to 3HP in heavy-duty applications.

About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.

Check out the ATV630U30M3 Schneider Electric price in the box on the right side or send a quick quote.

Product Details

Range Of Product
Altivar Process ATV600
Mounting Mode
Wall mount
Device Short Name
ATV630
Acceleration And Deceleration Ramps
Linear adjustable separately from 0.01...9999 s
Depth
7.99 in (203 mm)
Discrete Input Number
8
Variant
Standard version
[Us] Rated Supply Voltage
200...240 V - 15...10 %
Output Voltage
<= power supply voltage
Method Of Access
Slave Modbus TCP
Analogue Input Number
3
Minimum Switching Current
Relay output R1, R2, R3 5 mA 24 V DC
Net Weight
9.92 lb(US) (4.5 kg)
Motor Power Range AC-3
2.2…3 kW 200…240 V 3 phase
Product Specific Application
Process and utilities
Supply Frequency
50...60 Hz - 5...5 %
Safety Function
STO (safe torque off) SIL 3
Width
5.67 in (144 mm)
Degree Of Protection
UL type 1 UL 508C
Output Frequency
0.0001…0.5 kHz

Analogue Output Number

EMC Filter

Without EMC filter

Nominal Switching Frequency

4 kHz

Braking To Standstill

By DC injection

Height

13.78 in (350 mm)

Product Or Component Type

Variable speed drive

Prospective Line Isc

50 kA

Speed Drive Output Frequency

0.1…599 Hz

Type Of Cooling

Forced convection

Exchange Mode

Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP

Relay Output Number

Isolation

Between power and control terminals

Number Of Addresses

1…247 Modbus serial

Refresh Time

Relay output R1, R2, R3)5 ms +/- 0.5 ms)

Continuous Output Current

13.7 A 4 kHz normal duty 11.2 A 4 kHz heavy duty

Product Destination

Synchronous motors Asynchronous motors

IP Degree Of Protection

IP21IEC 61800-5-1 IP21IEC 60529

Maximum Horse Power Rating

3 hp heavy duty 4 hp normal duty

Switching Frequency

2...12 kHz adjustable 4...12 kHz with derating factor

Analogue Output Type

Software-configurable voltage AO1, AO2 0...10 V DC 470 Ohm 10 bits Software-configurable current AO1, AO2: 0...20 mA, resolution 10 bits

Apparent Power

4.1 kVA 240 V normal duty) 3.2 kVA 240 V heavy duty)

Synchronous Motor Control Profile

Permanent magnet motor Synchronous reluctance motor

Accuracy

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output

Connector Type

RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP RJ45 (on the remote graphic terminal) for Modbus serial

Motor Power Kw

3 kW normal duty) 2.2 kW heavy duty)

Frequency Resolution

Display unit 0.1 Hz Analog input 0.012/50 Hz

Analogue Input Type

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits

Linearity Error

AI1, AI2, AI3 +/- 0.15 % of maximum value analog input AO1, AO2: +/- 0.2 % for analog output

Maximum Transient Current

16.8 A 60 s heavy duty) 15.1 A 60 s normal duty)

Permissible Temporary Current Boost

1.1 x In during 60 s (normal duty) 1.5 x In during 60 s (heavy duty)

Input Compatibility

DI1...DI6: discrete input level 1 PLC conforming to EN/IEC 61131-2 DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68 STOA, STOB discrete input level 1 PLC EN/IEC 61131-2

Discrete Input Type

DI1...DI6 programmable, 24 V DC (<= 30 V), impedance: 3.5 kOhm DI5, DI6 programmable as pulse input 0…30 kHz, 24 V DC <= 30 V) STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm

Relay Output Type

Configurable relay logic R1 fault relay NO/NC 100000 cycles Configurable relay logic R2 sequence relay NO 100000 cycles Configurable relay logic R3 sequence relay NO 100000 cycles

Asynchronous Motor Control Profile

Optimized torque mode Variable torque standard Constant torque standard

Communication Port Protocol

Modbus TCP Ethernet Modbus serial

Supply

External supply for digital inputs 24 V DC 19…30 V), <1.25 mA overload and short-circuit protection Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection Internal supply for di

Electrical Connection

Control: removable screw terminals 0.5...1.5 mm²/AWG 20...AWG 16 Motor: screw terminal 4...6 mm²/AWG 12...AWG 10 Line side screw terminal 2.5...6 mm² AWG 14...AWG 10

Protection Type

Thermal protection motor Safe torque off motor Motor phase break motor Thermal protection drive Safe torque off drive Overheating drive Overcurrent between output phases and earth drive Overload of output voltage drive

Sampling Duration

2 ms +/- 0.5 ms DI1...DI4) - discrete input 5 ms +/- 1 ms DI5, DI6) - discrete input 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input 10 ms +/- 1 ms AO1) - analog output

Discrete Input Logic

Positive logic (source) (DI1...DI6), < 5 V (state 0), > 11 V (state 1) Negative logic (sink) (DI1...DI6), > 16 V (state 0), < 10 V (state 1) Positive logic (source) (DI5, DI6), < 0.6 V (state 0), > 2.5 V (state 1) Positive logic (source) ST

Line Current

11.5 A 200 V normal duty) 9.9 A 240 V normal duty) 8.7 A 200 V heavy duty) 7.6 A 240 V heavy duty)

Motor Slip Compensation

Can be suppressed Automatic whatever the load Adjustable Not available in permanent magnet motor law

Maximum Switching Current

Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC Relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms

Local Signalling

3 LEDs for local diagnostic 3 LEDs (dual colour) for embedded communication status 4 LEDs (dual colour) for communication module status 1 LED (red) for presence of voltage

Option Card

Slot A: communication module, Profibus DP V1 Slot A: communication module, Profinet Slot A: communication module, DeviceNet Slot A: communication module, Modbus TCP/EtherNet/IP Slot A: communication module, CANopen daisy chain RJ45

Variable Speed Drive Application Selection

Building - HVAC Compressor centrifugal Food and beverage processing Other application Mining mineral and metal Fan Mining mineral and metal Pump Oil and gas Fan Water and waste water Other application Building - HVAC Screw co

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
