ATV630D18M3 Schneider Electric Industrial Automation Components

Name: ATV630D18M3
Brand: Schneider Electric

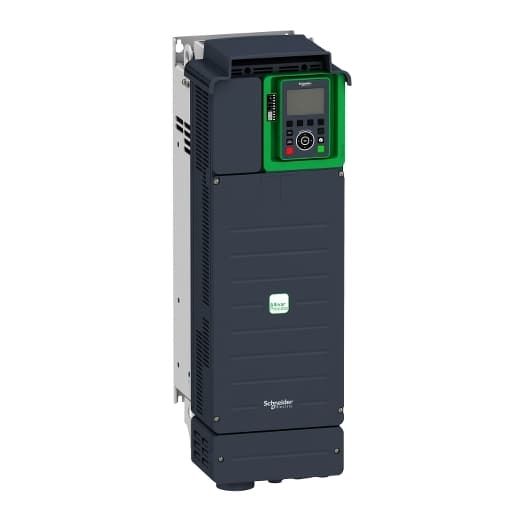

Schneider Electric ATV630D18M3 Schneider Electric ATV630D18M3 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar Process 630 series designed for variable and constant load torque applications, including optimized torque mode for PM (permanent magnet) motors and sensorless estimated flow rate. It features STO (Safe Torque Off up to SIL3), accurate measurement, installation energy drift detection, and embedded Ethernet for direct access to system configuration and monitoring. This model integrates actual pump curves to optimize system operating points and limits overvoltage at motor terminals. It offers continuous and historical real-time measurements with customizable dashboards, alongside predictive and preventive maintenance tracking functions. The ATV630D18M3, ATEX compliant, operates on a supply voltage of 170-264Vac, with dimensions of H673mm x W226mm x D271mm, and an IP21 UL type 1 degree of protection. It supports wall mounting and uses Modbus, Modbus TCP, and Ethernet communication protocols on a 3-phase network with an output frequency of 0.1-500 Hz. The drive has two analog outputs (0-10Vdc / 0-20mA), six digital inputs with specific functionalities including STO, and three digital outputs. It also includes three analog inputs compatible with various signal types. The rated current is 78.4A for normal-duty and 63.4A for heavy-duty operations at 4kHz, with maximum currents of 86.2A and 95.1A respectively for short durations. The rated active power is 18.5kW for normal-duty and 15kW for heavy-duty, corresponding to 25HP and 20HP respectively.

Part#:ATV630D18M3

Manufacturer:Schneider Electric

Product Lifecycle:Active

Get a quick Quote!

Schneider Electric ATV630D18M3 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar Process 630 series designed for variable and constant load torque applications, including optimized torque mode for PM (permanent magnet) motors and sensorless estimated flow rate. It features STO (Safe Torque Off up to SIL3), accurate measurement, installation energy drift detection, and embedded Ethernet for direct access to system configuration and monitoring. This model integrates actual pump curves to optimize system operating points and limits overvoltage at motor terminals. It offers continuous and historical real-time measurements with customizable dashboards, alongside predictive and preventive maintenance tracking functions. The ATV630D18M3, ATEX compliant, operates on a supply voltage of 170-264Vac, with dimensions of H673mm x W226mm x D271mm, and an IP21 UL type 1 degree of protection. It supports wall mounting and uses Modbus, Modbus TCP, and Ethernet communication protocols on a 3-phase network with an output frequency of 0.1-500 Hz. The drive has two analog outputs (0-10Vdc / 0-20mA), six digital inputs with specific functionalities including STO, and three digital outputs. It also includes three analog inputs compatible with various signal types. The rated current is 78.4A for normal-duty and 63.4A for heavy-duty operations at 4kHz, with maximum currents of 86.2A and 95.1A respectively for short durations. The rated active power is 18.5kW for normal-duty and 15kW for heavy-duty, corresponding to 25HP and 20HP respectively.

About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.

Check out the ATV630D18M3 Schneider Electric price in the box on the right side or send a quick quote.

Product Details

Type Of Cooling
Forced convection
Degree Of Protection
UL type 1 UL 508C
Width
8.90 in (226 mm)
Motor Power Range AC-3
15…25 kW 200…240 V 3 phase
Discrete Input Number
8
Product Specific Application
Process and utilities
Output Voltage
<= power supply voltage
Method Of Access
Slave Modbus TCP
Analogue Output Number
2
[Us] Rated Supply Voltage
200...240 V - 15...10 %
Speed Drive Output Frequency
0.1…599 Hz
Product Or Component Type
Variable speed drive
Variant
Standard version
Braking To Standstill
By DC injection
Relay Output Number
3
Minimum Switching Current
Relay output R1, R2, R3 5 mA 24 V DC
Number Of Addresses
1…247 Modbus serial
Supply Frequency
50...60 Hz - 5...5 %
Device Short Name
ATV630
Output Frequency
0.0001…0.5 kHz

Exchange Mode

Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP

Net Weight

31.31 lb(US) (14.2 kg)

Isolation

Between power and control terminals

Nominal Switching Frequency

4 kHz

Height

26.50 in (673 mm)

Refresh Time

Relay output R1, R2, R3)5 ms +/- 0.5 ms)

Analogue Input Number

Range Of Product

Altivar Process ATV600

Safety Function

STO (safe torque off) SIL 3

Mounting Mode

Wall mount

Acceleration And Deceleration Ramps

Linear adjustable separately from 0.01...9999 s

EMC Filter

Without EMC filter

Prospective Line Isc

50 kA

Depth

10.67 in (271 mm)

Permissible Temporary Current Boost

1.1 x In during 60 s (normal duty) 1.5 x In during 60 s (heavy duty)

Analogue Input Type

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits

IP Degree Of Protection

IP21IEC 61800-5-1 IP21IEC 60529

Accuracy

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output

Continuous Output Current

78.4 A 4 kHz normal duty 63.4 A 4 kHz heavy duty

Apparent Power

22.7 kVA 240 V normal duty) 18.7 kVA 240 V heavy duty)

Synchronous Motor Control Profile

Permanent magnet motor Synchronous reluctance motor

Product Destination

Synchronous motors Asynchronous motors

Linearity Error

AI1, AI2, AI3 +/- 0.15 % of maximum value analog input AO1, AO2: +/- 0.2 % for analog output

Analogue Output Type

Software-configurable voltage AO1, AO2 0...10 V DC 470 Ohm 10 bits Software-configurable current AO1, AO2: 0...20 mA, resolution 10 bits

Motor Power Kw

18.5 kW normal duty) 15 kW heavy duty)

Frequency Resolution

Display unit 0.1 Hz Analog input 0.012/50 Hz

Maximum Horse Power Rating

25 hp normal duty 20 hp heavy duty

Maximum Transient Current

86.2 A 60 s normal duty) 95.1 A 60 s heavy duty)

Connector Type

RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP RJ45 (on the remote graphic terminal) for Modbus serial

Switching Frequency

2...12 kHz adjustable 4...12 kHz with derating factor

Asynchronous Motor Control Profile

Optimized torque mode Variable torque standard Constant torque standard

Communication Port Protocol

Ethernet Modbus serial Modbus TCP

Electrical Connection

Control: removable screw terminals 0.5...1.5 mm²/AWG 20...AWG 16 Line side: screw terminal 35...50 mm²/AWG 3...AWG 1 Motor screw terminal 35...50 mm² AWG 3...AWG 1

Discrete Input Type

DI1...DI6 programmable, 24 V DC (<= 30 V), impedance: 3.5 kOhm DI5, DI6 programmable as pulse input 0…30 kHz, 24 V DC <= 30 V) STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm

Supply

External supply for digital inputs 24 V DC 19…30 V), <1.25 mA overload and short-circuit protection Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection Internal supply for di

Relay Output Type

Configurable relay logic R1 fault relay NO/NC 100000 cycles Configurable relay logic R2 sequence relay NO 100000 cycles Configurable relay logic R3 sequence relay NO 100000 cycles

Motor Slip Compensation

Automatic whatever the load Can be suppressed Not available in permanent magnet motor law Adjustable

Discrete Input Logic

Positive logic (source) (DI1...DI6), < 5 V (state 0), > 11 V (state 1) Negative logic (sink) (DI1...DI6), > 16 V (state 0), < 10 V (state 1) Positive logic (source) (DI5, DI6), < 0.6 V (state 0), > 2.5 V (state 1) Positive logic (source) ST

Input Compatibility

DI1...DI6: discrete input level 1 PLC conforming to EN/IEC 61131-2 DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68 STOA, STOB discrete input level 1 PLC EN/IEC 61131-2

Sampling Duration

2 ms +/- 0.5 ms DI1...DI4) - discrete input 5 ms +/- 1 ms DI5, DI6) - discrete input 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input 10 ms +/- 1 ms AO1) - analog output

Line Current

66.7 A 200 V normal duty) 54.5 A 240 V normal duty) 53.1 A 200 V heavy duty) 44.9 A 240 V heavy duty)

Maximum Switching Current

Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC Relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms

Local Signalling

3 LEDs for local diagnostic 3 LEDs (dual colour) for embedded communication status 4 LEDs (dual colour) for communication module status 1 LED (red) for presence of voltage

Option Card

Slot A: communication module, Profibus DP V1 Slot A: communication module, Profinet Slot A: communication module, DeviceNet Slot A: communication module, Modbus TCP/EtherNet/IP Slot A: communication module, CANopen daisy chain RJ45

Variable Speed Drive Application Selection

Building - HVAC Compressor centrifugal Food and beverage processing Other application Mining mineral and metal Fan Mining mineral and metal Pump Oil and gas Fan Water and waste water Other application Building - HVAC Screw co

Protection Type

Thermal protection motor Safe torque off motor Motor phase break motor Thermal protection drive Safe torque off drive Overheating drive Overcurrent between output phases and earth drive Overload of output voltage drive

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
