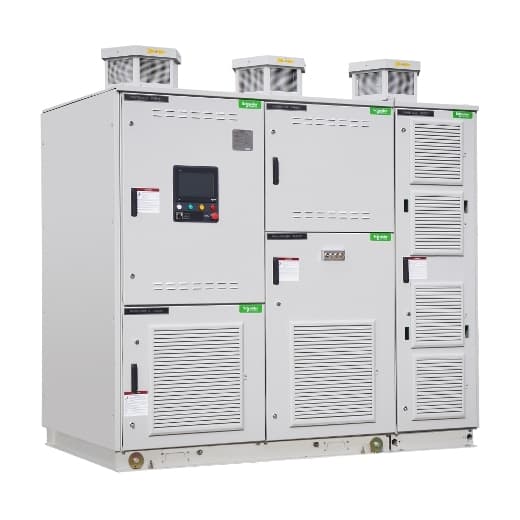

ATV6000D350A4242NA3 Schneider Electric Electronic Components

Product Details

• Assembly Style
  In floor-standing enclosure
• Net Weight
  9267.14 lb(US) (4203.5 kg)
• Discrete Input Number
  10
• Device Short Name
  ATV6000
• Prospective Line Isc
  31.5 kA 150 ms
• Volume Of Cooling Air
  1948039.60 Gal/hr(US) (7374 m3/h)
• Isolation
  Electrical between power and control
• Width
  104.72 in (2660.0 mm)
• Type Of Cooling
  Forced convection
• Relay Output Number
  3
• Range Of Product
  Altivar Process ATV6000
• Power Factor
  96
• IP Degree Of Protection
  IP31 conforming to IEC 60529
• Output Type
  IGBT inverter cells multilevel PWM
• Cable Entry
  Bottom
• Display Type
  10 inch LCD touch screen multi-language
• Output Voltage
  <= power supply voltage
• Depth
  55.12 in (1400.0 mm)
• Communication Port Protocol
  Ethernet IP/Modbus TCP
• Supply Frequency
  50 Hz +/- 5 %
Frequency Resolution
0.01 Hz
Phase
3 phase
Analogue Output Number
2
Colour Of Enclosure
Light grey (RAL 7035)
Input Type
24 pulse diode rectifier bridge
Maximum THDI
<3 % conforming to IEEE 519-1992
Noise Level
80 dB
[Us] Rated Supply Voltage
4.16 kV +/- 10 %
Product Specific Application
Process and utilities
Apparent Power
350 kVA
Discrete Output Number
2
Product Or Component Type
Medium voltage variable speed drive
Speed Drive Output Frequency
0.5…120 Hz
Height
99.88 in (2537.0 mm)
Discrete Output Type
Logic output <= 30 V DC 100 mA
Line Current
48.6 A normal duty 45 A heavy duty
Maximum Transient Current
69.7 A 3 s normal duty) 82.5 A 3 s heavy duty)
Analogue Input Type
configurable voltage: 0...10 V DC, impedance: 30 kOhm, resolution: 12 bits configurable current: 0...20 mA, impedance: 250 Ohm, resolution: 12 bits
EMC Filter
Integrated conforming to EN/IEC 61800-3 category C3 control Integrated conforming to EN/IEC 61800-3 category C4 power
Energy Efficiency Ratio
0.985 inverter 0.96 total drive including transformer
Motor Power Kw
280 kW normal duty 260 kW heavy duty
Power Losses
12 kW normal duty 11.3 kW heavy duty
Continuous Output Current
46.5 A normal duty 44 A heavy duty
Connector Type
2 RJ45 (on the control block) for Ethernet IP/Modbus TCP 1 RJ45 (on the control block) for Modbus serial
Analogue Output Type
Configurable voltage 0...10 V DC 470 Ohm 10 bits Configurable current 0...20 mA 500 Ohm 10 bits
Product Destination
Asynchronous motors Synchronous motors Permanent magnet motors
Synchronous Motor Control Profile
Permanent magnet motor Synchronous motor with external exitation Vector control
Overvoltage Category
II conforming to EN/IEC 61800-5-1 motor side III conforming to EN/IEC 61800-5-1 line side III conforming to EN/IEC 61800-5-1 low voltage connections
Relay Output Type
Configurable relay logic R1: fault relay NO/NC Configurable relay logic R2: sequence relay NO Configurable relay logic R3: sequence relay NO
Supply
Internal supply for digital inputs and PoE 24 V DC 21…27 V, <200 mA overload and short-circuit protection Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection External supply
Discrete Input Type
DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm DI7, DI8 programmable as pulse input 0…30 kHz, 24 V DC <= 30 V) POEA, POEB PWM output enable, 24 V DC (<= 30 V), impedance: > 2.2 kOhm
Electrical Connection
M10 bar for main supply M10 bar for motor Terminal, clamping capacity: 0.25...2.5 mm² for control Terminal, clamping capacity: 1.5...16 mm² for cooling fan
Permissible Temporary Current Boost
1.2 x In during 60 s (normal duty) 1.5 x In during 3 s (normal duty) 1.5 x In during 60 s (heavy duty) 1.8 x In during 3 s (heavy duty)
Cable Cross Section
0.05 in² (35 mm²) line normal duty 0.05 in² (35 mm²) line heavy duty 0.05 in² (35 mm²) motor normal duty 0.05 in² (35 mm²) motor heavy duty
Asynchronous Motor Control Profile
Variable torque standard Sensorless flux vector control Constant torque standard Closed loop vector control Dynamic energy saving
Option Card
Slot A communication module Profibus DP V1 Slot A communication module Profinet Slot A communication module DeviceNet Slot A communication module CANopen daisy chain RJ45 Slot A communication module CANopen SUB-D 9 Slot A communic
Provided Equipment
Human machine interface Medium voltage arrestors Plinth Enclosure Phase-shifting transformer Cooling fans Power cells
Protection Type
Line supply overvoltage drive Line supply undervoltage drive Line supply phase loss drive Overvoltages on the DC bus drive Thermal overload for transformer: drive Cabinet overheating: drive Overcurrent drive Overload: dr
