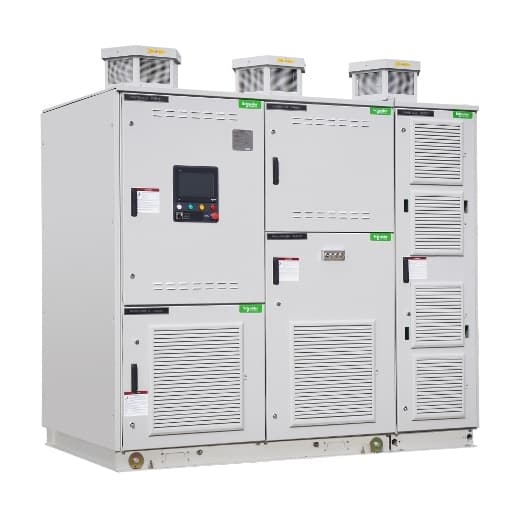

ATV6000C338A4242NA3 Schneider Electric Electronic Components

Product Details

• Device Short Name
  ATV6000
• Prospective Line Isc
  31.5 kA 150 ms
• Apparent Power
  3380 kVA
• Product Or Component Type
  Medium voltage variable speed drive
• Input Type
  24 pulse diode rectifier bridge
• Maximum THDI
  <3 % conforming to IEEE 519-1992
• Height
  108.31 in (2751.0 mm)
• Product Specific Application
  Process and utilities
• Type Of Cooling
  Forced convection
• Width
  211.02 in (5360.0 mm)
• Noise Level
  80 dB
• Discrete Output Type
  Logic output <= 30 V DC 100 mA
• IP Degree Of Protection
  IP31 conforming to IEC 60529
• Frequency Resolution
  0.01 Hz
• Display Type
  10 inch LCD touch screen multi-language
• Discrete Output Number
  2
• Assembly Style
  In floor-standing enclosure
• Phase
  3 phase
• Volume Of Cooling Air
  6541545.50 Gal/hr(US) (24762 m3/h)
• Output Type
  IGBT inverter cells multilevel PWM
Speed Drive Output Frequency
0.5…120 Hz
Net Weight
24074.50 lb(US) (10920.0 kg)
Discrete Input Number
10
Range Of Product
Altivar Process ATV6000
Colour Of Enclosure
Light grey (RAL 7035)
Output Voltage
<= power supply voltage
Power Factor
96
Cable Entry
Bottom
Analogue Output Number
2
Supply Frequency
50 Hz +/- 5 %
Depth
66.93 in (1700.0 mm)
Communication Port Protocol
Ethernet IP/Modbus TCP
Isolation
Electrical between power and control
[Us] Rated Supply Voltage
4.16 kV +/- 10 %
Relay Output Number
3
Continuous Output Current
392 A heavy duty 448 A normal duty
EMC Filter
Integrated conforming to EN/IEC 61800-3 category C3 control Integrated conforming to EN/IEC 61800-3 category C4 power
Motor Power Kw
2700 kW normal duty 2360 kW heavy duty
Energy Efficiency Ratio
0.985 inverter 0.96 total drive including transformer
Analogue Input Type
configurable voltage: 0...10 V DC, impedance: 30 kOhm, resolution: 12 bits configurable current: 0...20 mA, impedance: 250 Ohm, resolution: 12 bits
Power Losses
114.9 kW normal duty 100.5 kW heavy duty
Maximum Transient Current
735 A 3 s heavy duty) 672 A 3 s normal duty)
Connector Type
2 RJ45 (on the control block) for Ethernet IP/Modbus TCP 1 RJ45 (on the control block) for Modbus serial
Line Current
408 A heavy duty 470 A normal duty
Analogue Output Type
Configurable voltage 0...10 V DC 470 Ohm 10 bits Configurable current 0...20 mA 500 Ohm 10 bits
Supply
Internal supply for digital inputs and PoE 24 V DC 21…27 V, <200 mA overload and short-circuit protection Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection External supply
Overvoltage Category
II conforming to EN/IEC 61800-5-1 motor side III conforming to EN/IEC 61800-5-1 line side III conforming to EN/IEC 61800-5-1 low voltage connections
Product Destination
Permanent magnet motors Synchronous motors Asynchronous motors
Synchronous Motor Control Profile
Permanent magnet motor Synchronous motor with external exitation Vector control
Discrete Input Type
DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm DI7, DI8 programmable as pulse input 0…30 kHz, 24 V DC <= 30 V) POEA, POEB PWM output enable, 24 V DC (<= 30 V), impedance: > 2.2 kOhm
Relay Output Type
Configurable relay logic R1: fault relay NO/NC Configurable relay logic R2: sequence relay NO Configurable relay logic R3: sequence relay NO
Permissible Temporary Current Boost
1.2 x In during 60 s (normal duty) 1.5 x In during 3 s (normal duty) 1.5 x In during 60 s (heavy duty) 1.8 x In during 3 s (heavy duty)
Electrical Connection
M10 bar for main supply M10 bar for motor Terminal, clamping capacity: 0.25...2.5 mm² for control Terminal, clamping capacity: 1.5...16 mm² for cooling fan
Cable Cross Section
0.37 in² (240 mm²) line normal duty 0.23 in² (150 mm²) line heavy duty 0.37 in² (240 mm²) 2 motor normal duty 0.23 in² (150 mm²) 2 motor heavy duty
Asynchronous Motor Control Profile
Variable torque standard Closed loop vector control Dynamic energy saving Sensorless flux vector control Constant torque standard
Option Card
Slot A communication module Profibus DP V1 Slot A communication module Profinet Slot A communication module DeviceNet Slot A communication module CANopen daisy chain RJ45 Slot A communication module CANopen SUB-D 9 Slot A communic
Provided Equipment
Plinth Human machine interface Medium voltage arrestors Phase-shifting transformer Cooling fans Power cells Enclosure
Protection Type
Line supply overvoltage drive Line supply undervoltage drive Line supply phase loss drive Overvoltages on the DC bus drive Thermal overload for transformer: drive Cabinet overheating: drive Overcurrent drive Overload: dr
