M9F21102 Schneider Electric Industrial Automation Components
Part#:M9F21102
Manufacturer:Schneider Electric
Product Lifecycle:Active
In-stock parts: 7
Jan 5, 2026

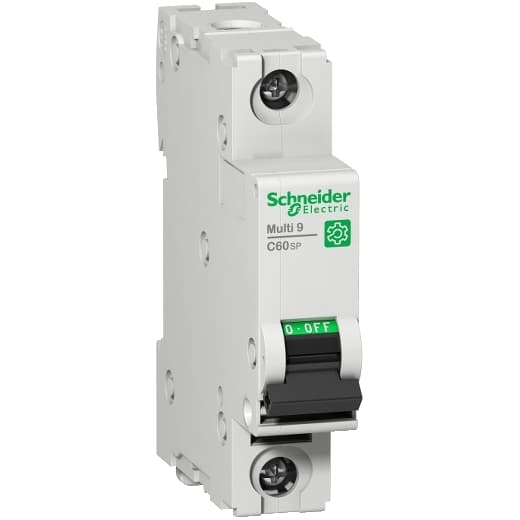

Schneider Electric M9F21102 is a Miniature Circuit Breaker (MCB) within the C60SP sub-range, designed for a single pole configuration. It features a rated current of 2A and is compliant with UL1077 standards. The MCB operates with a rated insulation voltage (Ui) of 500V, a DC rated voltage of 60Vdc, and an AC operating voltage (Ue) of 415V. It is capable of handling rated impulse voltages (Uimp) up to 6kV. The short circuit breaking rating is specified as 14kA AIR for both 120Vac and 240Vac, and 10kA AIR for 277Vac and 65Vdc. The rated voltage for phase-to-neutral applications is 277V. This product protects a single pole and follows a B tripping curve.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the M9F21102 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Depth 2.83 in (72 mm)
- Height 3.19 in (81 mm)
- Product Or Component Type Miniature circuit-breaker
- Number Of Protected Poles 1
- Color Gray
- Product Name Multi 9 C60
- Contact Position Indicator Yes
- Mounting Support DIN rail
- Range Multi 9
- Line Rated Current 2 A 77 °F (25 °C) EN/IEC 60947-2
- Local Signalling ON/OFF indication
- [Ui] Rated Insulation Voltage 500 V AC EN/IEC 60947-2
- 9 Mm Pitches 2
- Trip Unit Technology Thermal-magnetic
- Width 0.71 in (18 mm)
- Device Short Name C60SP
- Mounting Mode Clip-on
- Wire Stripping Length 0.55 in (14 mm) top or bottom
- Poles Description 1P
- Suitability For Isolation Yes EN/IEC 60947-2
- Control Type Toggle
- Electrical Durability 10000 cycles
- Device Application Distribution
- Curve Code B
- [Uimp] Rated Impulse Withstand Voltage 6 kVEN/IEC 60947-2
- Mechanical Durability 20000 cycles
- Provision For Padlocking Padlockable
- Tightening Torque 22.13 lbf.in (2.5 N.m) top or bottom
- Earth-Leakage Protection Without
- Network Type AC DC
- Magnetic Tripping Limit 4 x In +/- 20 % AC 5.7 x In +/- 20 % DC
- [Ue] Rated Operational Voltage 240 V AC 50/60 Hz 415 V AC 50/60 Hz 60 V DC
- Connections - Terminals Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²
- Product Certifications IEC CCC UR CSA
- Standards EN/IEC 60947-2 GB 14048.2 UL 1077 CSA C22.2 No 235
- [Ics] Rated Service Breaking Capacity 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 20 kA 100 % EN/IEC 60947-2 - 60 V DC 2.25 kA 75 % GB 14048.2 - 415 V AC 7.5 kA 75 % GB 14048.2 - 240 V AC 20 kA 100 % GB 14048.2 - 60 V DC
- Breaking Capacity 10 kA AIR 277 V AC UL 1077 14 kA AIR 240 V AC UL 1077 14 kA AIR 120 V AC UL 1077 10 kA AIR 65 V DC UL 1077 10 kA AIR 277 V AC CSA C22.2 No 235 14 kA AIR 240 V AC CSA C22.2 No 235 14 kA AIR 120 V AC CSA C22.2 No 235 10 kA
