M9F22163 Schneider Electric Industrial Automation Components
Part#:M9F22163
Manufacturer:Schneider Electric
Product Lifecycle:Active
In-stock parts: 5
Jan 5, 2026

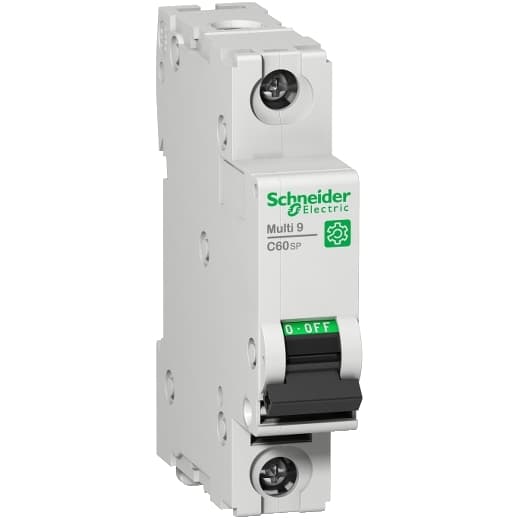

Schneider Electric M9F22163 is a Miniature Circuit Breaker (MCB) within the C60SP sub-range, designed for a single pole configuration. It features a rated current of 63A and is compliant with UL1077 standards. The MCB has a rated insulation voltage (Ui) of 500V, a DC rated voltage of 60Vdc, and an AC operating voltage (Ue) of 415V. It is capable of handling an impulse voltage (Uimp) of 6kV. The short circuit breaking rating is specified as 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 277Vac and 65Vdc. The rated voltage for phase-to-neutral applications is 277V. This product is designed to protect a single pole and features a C tripping curve.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the M9F22163 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Product Name Multi 9 C60
- Local Signalling ON/OFF indication
- Depth 2.83 in (72 mm)
- Number Of Protected Poles 1
- Electrical Durability 10000 cycles
- Device Application Distribution
- Control Type Toggle
- Range Multi 9
- Curve Code C
- [Ui] Rated Insulation Voltage 500 V AC EN/IEC 60947-2
- Color Gray
- Device Short Name C60SP
- Contact Position Indicator Yes
- Provision For Padlocking Padlockable
- Line Rated Current 63 A 77 °F (25 °C) EN/IEC 60947-2
- Mounting Support DIN rail
- Tightening Torque 30.98 lbf.in (3.5 N.m) top or bottom
- Suitability For Isolation Yes EN/IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage 6 kVEN/IEC 60947-2
- Product Or Component Type Miniature circuit-breaker
- Mounting Mode Clip-on
- Poles Description 1P
- Height 3.19 in (81 mm)
- Mechanical Durability 20000 cycles
- Trip Unit Technology Thermal-magnetic
- 9 Mm Pitches 2
- Width 0.71 in (18 mm)
- Wire Stripping Length 0.55 in (14 mm) top or bottom
- Earth-Leakage Protection Without
- Network Type AC DC
- Magnetic Tripping Limit 8.5 x In +/- 20 % AC 12 x In +/- 20 % DC
- [Ue] Rated Operational Voltage 240 V AC 50/60 Hz 415 V AC 50/60 Hz 60 V DC
- Connections - Terminals Tunnel type terminal top or bottom) 0.00…0.05 in² (1…35 mm²) AWG 18...AWG 2) - rigid Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 3) - flexible with ferrule Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²
- Standards EN/IEC 60947-2 GB 14048.2 UL 1077 CSA C22.2 No 235
- Product Certifications IEC CCC UR CSA
- [Ics] Rated Service Breaking Capacity 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 20 kA 100 % EN/IEC 60947-2 - 60 V DC 2.25 kA 75 % GB 14048.2 - 415 V AC 7.5 kA 75 % GB 14048.2 - 240 V AC 20 kA 100 % GB 14048.2 - 60 V DC
- Breaking Capacity 10 kA AIR 65 V DC UL 1077 10 kA AIR 65 V DC CSA C22.2 No 235 3 kA Icu 415 V AC EN/IEC 60947-2 10 kA Icu 240 V AC EN/IEC 60947-2 20 kA Icu 60 V DC EN/IEC 60947-2 3 kA Icu 415 V AC GB 14048.2 10 kA Icu 240 V AC GB 14048.2
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents M9F22163 Specs
This item can ship within 24h!
1-year warranty
$132.84
Stock:
5
Select Qty:
$132.84
$132.84 each
By purchasing this item, you agree to the Terms & Conditions
