M9F22316 Schneider Electric Industrial Automation Components
Part#:M9F22316
Manufacturer:Schneider Electric
Product Lifecycle:Active
In-stock parts: 45
Jan 5, 2026

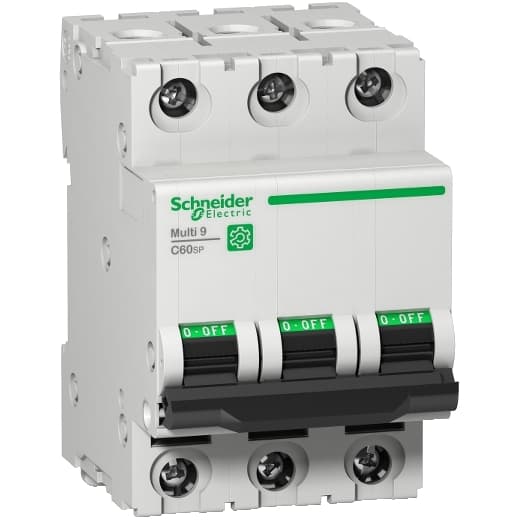

Schneider Electric M9F22316 is a Miniature Circuit Breaker (MCB) within the C60SP sub-range, designed to comply with UL1077 standards. This three-pole MCB has a rated current of 16A and offers a short circuit breaking rating of 14kA AIR at 240Vac and 10kA AIR at 480Y/277Vac. All three poles are protected, and it features a C tripping curve.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the M9F22316 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Trip Unit Technology Thermal-magnetic
- Poles Description 3P
- Height 3.19 in (81 mm)
- Mounting Support DIN rail
- Device Short Name C60SP
- Suitability For Isolation Yes EN/IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage 6 kVEN/IEC 60947-2
- Product Or Component Type Miniature circuit-breaker
- Contact Position Indicator Yes
- Range Multi 9
- Curve Code C
- Device Application Distribution
- Control Type Toggle
- Electrical Durability 10000 cycles
- Product Name Multi 9 C60
- Line Rated Current 16 A 77 °F (25 °C) EN/IEC 60947-2
- Magnetic Tripping Limit 8.5 x In +/- 20 % AC
- 9 Mm Pitches 6
- Tightening Torque 22.13 lbf.in (2.5 N.m) top or bottom
- Network Type AC
- Local Signalling ON/OFF indication
- Number Of Protected Poles 3
- Mounting Mode Clip-on
- Color Gray
- Earth-Leakage Protection Without
- [Ui] Rated Insulation Voltage 500 V AC EN/IEC 60947-2
- Mechanical Durability 20000 cycles
- Depth 2.83 in (72 mm)
- Width 2.13 in (54 mm)
- Provision For Padlocking Padlockable
- Wire Stripping Length 0.55 in (14 mm) top or bottom
- [Ue] Rated Operational Voltage 240 V AC 50/60 Hz 415 V AC 50/60 Hz 440 V AC 50/60 Hz
- Connections - Terminals Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²
- Product Certifications IEC CCC UR CSA
- Standards EN/IEC 60947-2 GB 14048.2 UL 1077 CSA C22.2 No 235
- [Ics] Rated Service Breaking Capacity 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 15 kA 75 % EN/IEC 60947-2 - 240 V AC 4.5 kA 75 % GB 14048.2 - 440 V AC 7.5 kA 75 % GB 14048.2 - 415 V AC 15 kA 75 % GB 14048.2 - 240 V AC
- Breaking Capacity 14 kA AIR 240 V AC UL 1077 14 kA AIR 240 V AC CSA C22.2 No 235 10 kA AIR 480Y/277 V AC UL 1077 10 kA AIR 480Y/277 V AC CSA C22.2 No 235 6 kA Icu 440 V AC EN/IEC 60947-2 10 kA Icu 415 V AC EN/IEC 60947-2 20 kA Icu 240 V AC EN/
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents M9F22316 Specs
This item can ship within 24h!
1-year warranty
$340.20
Stock:
45
Select Qty:
$340.20
$340.20 each
