M9F21116 Schneider Electric Industrial Automation Components
Part#:M9F21116
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!

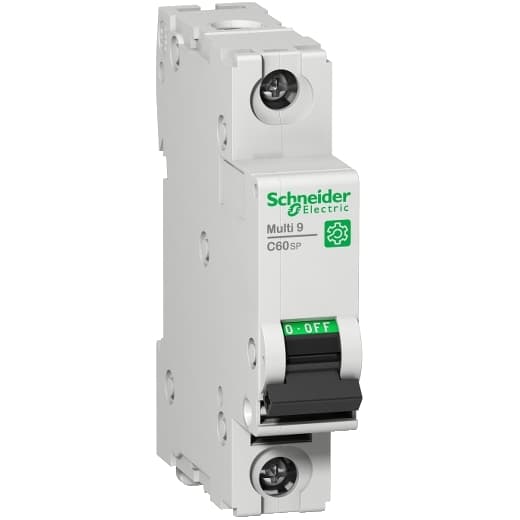

Schneider Electric M9F21116 is a Miniature Circuit Breaker (MCB) within the C60SP sub-range, designed for a single pole configuration. It features a rated current of 16A and is compliant with UL1077 standards. The MCB has a rated insulation voltage (Ui) of 500V, a DC rated voltage of 60Vdc, and an AC operating voltage (Ue) of 415V. It is capable of handling an impulse voltage (Uimp) of 6kV. The short circuit breaking rating is specified as 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 277Vac and 65Vdc. For AC applications, the phase-to-neutral rated voltage is 277V. The device protects a single pole and operates with a B tripping curve.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the M9F21116 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Width 0.71 in (18 mm)
- Product Or Component Type Miniature circuit-breaker
- Mounting Mode Clip-on
- Electrical Durability 10000 cycles
- Device Application Distribution
- Curve Code B
- Contact Position Indicator Yes
- Provision For Padlocking Padlockable
- Number Of Protected Poles 1
- Product Name Multi 9 C60
- Trip Unit Technology Thermal-magnetic
- [Ui] Rated Insulation Voltage 500 V AC EN/IEC 60947-2
- Depth 2.83 in (72 mm)
- Line Rated Current 16 A 77 °F (25 °C) EN/IEC 60947-2
- Local Signalling ON/OFF indication
- Color Gray
- Poles Description 1P
- [Uimp] Rated Impulse Withstand Voltage 6 kVEN/IEC 60947-2
- Device Short Name C60SP
- Suitability For Isolation Yes EN/IEC 60947-2
- Control Type Toggle
- Mechanical Durability 20000 cycles
- 9 Mm Pitches 2
- Wire Stripping Length 0.55 in (14 mm) top or bottom
- Range Multi 9
- Mounting Support DIN rail
- Earth-Leakage Protection Without
- Tightening Torque 22.13 lbf.in (2.5 N.m) top or bottom
- Height 3.19 in (81 mm)
- Network Type AC DC
- Magnetic Tripping Limit 4 x In +/- 20 % AC 5.7 x In +/- 20 % DC
- [Ue] Rated Operational Voltage 240 V AC 50/60 Hz 415 V AC 50/60 Hz 60 V DC
- Connections - Terminals Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²
- Product Certifications IEC CCC UR CSA
- Standards EN/IEC 60947-2 GB 14048.2 UL 1077 CSA C22.2 No 235
- [Ics] Rated Service Breaking Capacity 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 20 kA 100 % EN/IEC 60947-2 - 60 V DC 2.25 kA 75 % GB 14048.2 - 415 V AC 7.5 kA 75 % GB 14048.2 - 240 V AC 20 kA 100 % GB 14048.2 - 60 V DC
- Breaking Capacity 10 kA AIR 277 V AC UL 1077 14 kA AIR 240 V AC UL 1077 14 kA AIR 120 V AC UL 1077 10 kA AIR 65 V DC UL 1077 10 kA AIR 277 V AC CSA C22.2 No 235 14 kA AIR 240 V AC CSA C22.2 No 235 14 kA AIR 120 V AC CSA C22.2 No 235 10 kA
