M9F23310 Schneider Electric Industrial Automation Components
Part#:M9F23310
Manufacturer:Schneider Electric
Product Lifecycle:Active
In-stock parts: 10
Jan 5, 2026

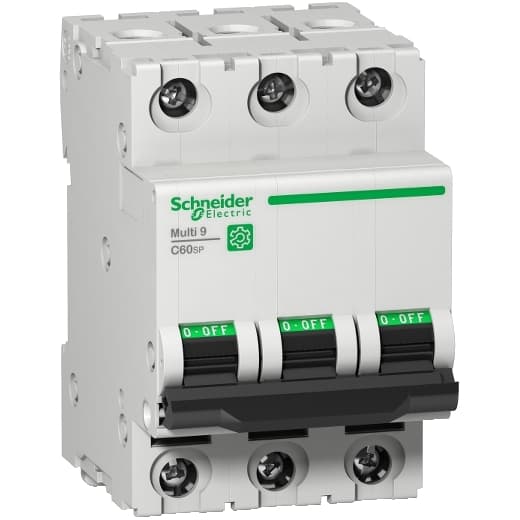

Schneider Electric M9F23310 is a Miniature Circuit Breaker (MCB) within the C60SP sub-range, designed to provide circuit protection. It features a 3-pole configuration with each pole rated for 10A current. This MCB is compliant with UL1077 standards, ensuring its suitability for specific applications. It offers a short circuit breaking rating of 14kA AIR at 240Vac and 10kA AIR at 480Y/277Vac. All three poles are protected, and it operates with a D tripping curve for precise protection against overload and short-circuit conditions.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the M9F23310 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Product Name Multi 9 C60
- Device Short Name C60SP
- Magnetic Tripping Limit 12 x In +/- 20 % AC
- 9 Mm Pitches 6
- Wire Stripping Length 0.55 in (14 mm) top or bottom
- Curve Code D
- Number Of Protected Poles 3
- [Ui] Rated Insulation Voltage 500 V AC EN/IEC 60947-2
- Electrical Durability 10000 cycles
- [Uimp] Rated Impulse Withstand Voltage 6 kVEN/IEC 60947-2
- Range Multi 9
- Trip Unit Technology Thermal-magnetic
- Product Or Component Type Miniature circuit-breaker
- Local Signalling ON/OFF indication
- Poles Description 3P
- Height 3.19 in (81 mm)
- Mounting Mode Clip-on
- Line Rated Current 10 A 77 °F (25 °C) EN/IEC 60947-2
- Network Type AC
- Mounting Support DIN rail
- Device Application Distribution
- Suitability For Isolation Yes EN/IEC 60947-2
- Contact Position Indicator Yes
- Depth 2.83 in (72 mm)
- Provision For Padlocking Padlockable
- Color Gray
- Width 2.13 in (54 mm)
- Earth-Leakage Protection Without
- Tightening Torque 22.13 lbf.in (2.5 N.m) top or bottom
- Mechanical Durability 20000 cycles
- Control Type Toggle
- [Ue] Rated Operational Voltage 240 V AC 50/60 Hz 415 V AC 50/60 Hz 440 V AC 50/60 Hz
- Connections - Terminals Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²
- Product Certifications IEC CCC UR CSA
- Standards EN/IEC 60947-2 GB 14048.2 UL 1077 CSA C22.2 No 235
- [Ics] Rated Service Breaking Capacity 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 15 kA 75 % EN/IEC 60947-2 - 240 V AC 4.5 kA 75 % GB 14048.2 - 440 V AC 7.5 kA 75 % GB 14048.2 - 415 V AC 15 kA 75 % GB 14048.2 - 240 V AC
- Breaking Capacity 14 kA AIR 240 V AC UL 1077 14 kA AIR 240 V AC CSA C22.2 No 235 10 kA AIR 480Y/277 V AC UL 1077 10 kA AIR 480Y/277 V AC CSA C22.2 No 235 6 kA Icu 440 V AC EN/IEC 60947-2 10 kA Icu 415 V AC EN/IEC 60947-2 20 kA Icu 240 V AC EN/
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents M9F23310 Specs
This item can ship within 24h!
1-year warranty
$340.20
