ATV61HC31Y Schneider Electric Variable Frequency Drives (VFD)

Schneider Electric ATV61HC31Y Schneider Electric ATV61HC31Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for three-phase networks with a supply voltage range of 425-759Vac, including nominal voltages of 480Vac, 500Vac, 600Vac, and 690Vac. It features variable speed/frequency control with U/F ratio customization (2 points / 5 points / energy saving), sensorless flux vector control, and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. The unit comes with a built-in EMC filter (class C3), a built-in heatsink, and a coated version for enhanced chemical resistance. It has an IP20 UL type 1 degree of protection and dimensions of H1190mm x W595mm x D377mm. The rated current specifications are 390A at 500Vac, 336A at 575Vac, 355A at 690Vac, with a maximum current of 468A for 60 seconds. For mounting, it is designed for wall installation. Communication is facilitated through Modbus and CANopen protocols. It operates on a 3-phase network with an output frequency range of 0.1-500 Hz. The drive includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source), an additional programmable digital input, and a PWR safety input, along with 1 digital output (C/O SPDT relay contact) and 1 digital output (NO relay contact). It also features 2 analog inputs for versatile connectivity. The current consumption is rated at 342A for 500Vac, 311A for 600Vac, and 317A for 690Vac, with rated active power of 315kW at 690Vac and 250kW at 500Vac, equivalent to 350HP.
Schneider Electric

Part#:ATV61HC31Y

Manufacturer:Schneider Electric

Product Lifecycle:Active

Get a quick Quote!

Schneider Electric ATV61HC31Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for three-phase networks with a supply voltage range of 425-759Vac, including nominal voltages of 480Vac, 500Vac, 600Vac, and 690Vac. It features variable speed/frequency control with U/F ratio customization (2 points / 5 points / energy saving), sensorless flux vector control, and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. The unit comes with a built-in EMC filter (class C3), a built-in heatsink, and a coated version for enhanced chemical resistance. It has an IP20 UL type 1 degree of protection and dimensions of H1190mm x W595mm x D377mm. The rated current specifications are 390A at 500Vac, 336A at 575Vac, 355A at 690Vac, with a maximum current of 468A for 60 seconds. For mounting, it is designed for wall installation. Communication is facilitated through Modbus and CANopen protocols. It operates on a 3-phase network with an output frequency range of 0.1-500 Hz. The drive includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source), an additional programmable digital input, and a PWR safety input, along with 1 digital output (C/O SPDT relay contact) and 1 digital output (NO relay contact). It also features 2 analog inputs for versatile connectivity. The current consumption is rated at 342A for 500Vac, 311A for 600Vac, and 317A for 690Vac, with rated active power of 315kW at 690Vac and 250kW at 500Vac, equivalent to 350HP.

About the manufacturer: Schneider Electric is one of the manufacturers that offers Variable Frequency Drives (VFD) that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.

Check out the ATV61HC31Y Schneider Electric price in the box on the right side or send a quick quote.

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

ATV61HC31Y Description

Schneider Electric ATV61HC31Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for three-phase networks with a supply voltage range of 425-759Vac, including nominal voltages of 480Vac, 500Vac, 600Vac, and 690Vac. It features variable speed/frequency control with U/F ratio customization (2 points / 5 points / energy saving), sensorless flux vector control, and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. The unit comes with a built-in EMC filter (class C3), a built-in heatsink, and a coated version for enhanced chemical resistance. It has an IP20 UL type 1 degree of protection and dimensions of H1190mm x W595mm x D377mm. The rated current specifications are 390A at 500Vac, 336A at 575Vac, 355A at 690Vac, with a maximum current of 468A for 60 seconds. For mounting, it is designed for wall installation. Communication is facilitated through Modbus and CANopen protocols. It operates on a 3-phase network with an output frequency range of 0.1-500 Hz. The drive includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source), an additional programmable digital input, and a PWR safety input, along with 1 digital output (C/O SPDT relay contact) and 1 digital output (NO relay contact). It also features 2 analog inputs for versatile connectivity. The current consumption is rated at 342A for 500Vac, 311A for 600Vac, and 317A for 690Vac, with rated active power of 315kW at 690Vac and 250kW at 500Vac, equivalent to 350HP.

1-year warranty

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

By purchasing this item, you agree to the Terms & Conditions

Quotebeam is NOT an authorized distributor of Schneider Electric

Shipping and Delivery Worldwide

calculate costs and time

Secure Payment Processing

with money back guarantee

1 year warranty

on all parts

Responsive Customer Support

we're here to help!

Need more details?

Feel free to chat with us or check our FAQ

Schneider Electric Disclaimer:

The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Schneider Electric Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Schneider Electric, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Relevant products

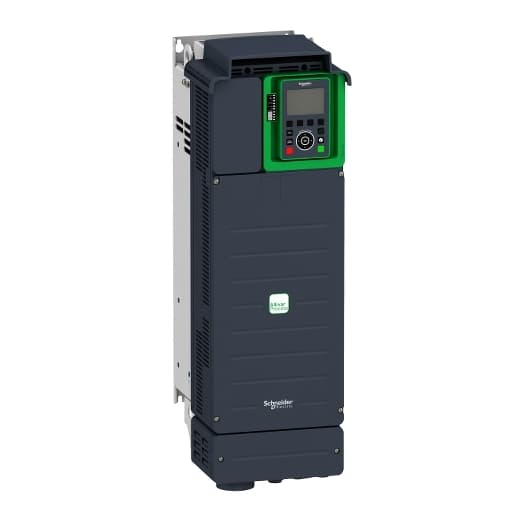

ATV630D18M3 Part Image. Manufactured by Schneider Electric.

ATV630D18M3

Verified stock: 0

Schneider Electric ATV630D18M3 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar Process 630 series designed for variable and constant load torque applications, including optimized torque mode for PM (permanent magnet) motors and sensorless estimated flow rate. It features STO (Safe Torque Off up to SIL3), accurate measurement, installation energy drift detection, and embedded Ethernet for direct access to system configuration and monitoring. This model integrates actual pump curves to optimize system operating points and limits overvoltage at motor terminals. It offers continuous and historical real-time measurements with customizable dashboards, alongside predictive and preventive maintenance tracking functions. The ATV630D18M3, ATEX compliant, operates on a supply voltage of 170-264Vac, with dimensions of H673mm x W226mm x D271mm, and an IP21 UL type 1 degree of protection. It supports wall mounting and uses Modbus, Modbus TCP, and Ethernet communication protocols on a 3-phase network with an output frequency of 0.1-500 Hz. The drive has two analog outputs (0-10Vdc / 0-20mA), six digital inputs with specific functionalities including STO, and three digital outputs. It also includes three analog inputs compatible with various signal types. The rated current is 78.4A for normal-duty and 63.4A for heavy-duty operations at 4kHz, with maximum currents of 86.2A and 95.1A respectively for short durations. The rated active power is 18.5kW for normal-duty and 15kW for heavy-duty, corresponding to 25HP and 20HP respectively.

Schneider Electric

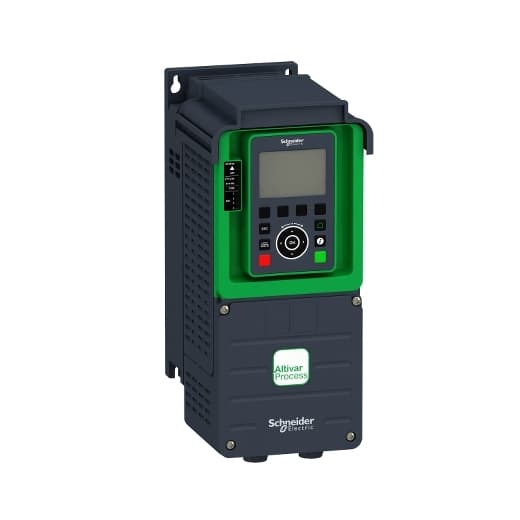

ATV630U30M3 Part Image. Manufactured by Schneider Electric.
