K50BCLBXXPQ Banner Pick-to-Light Sensors

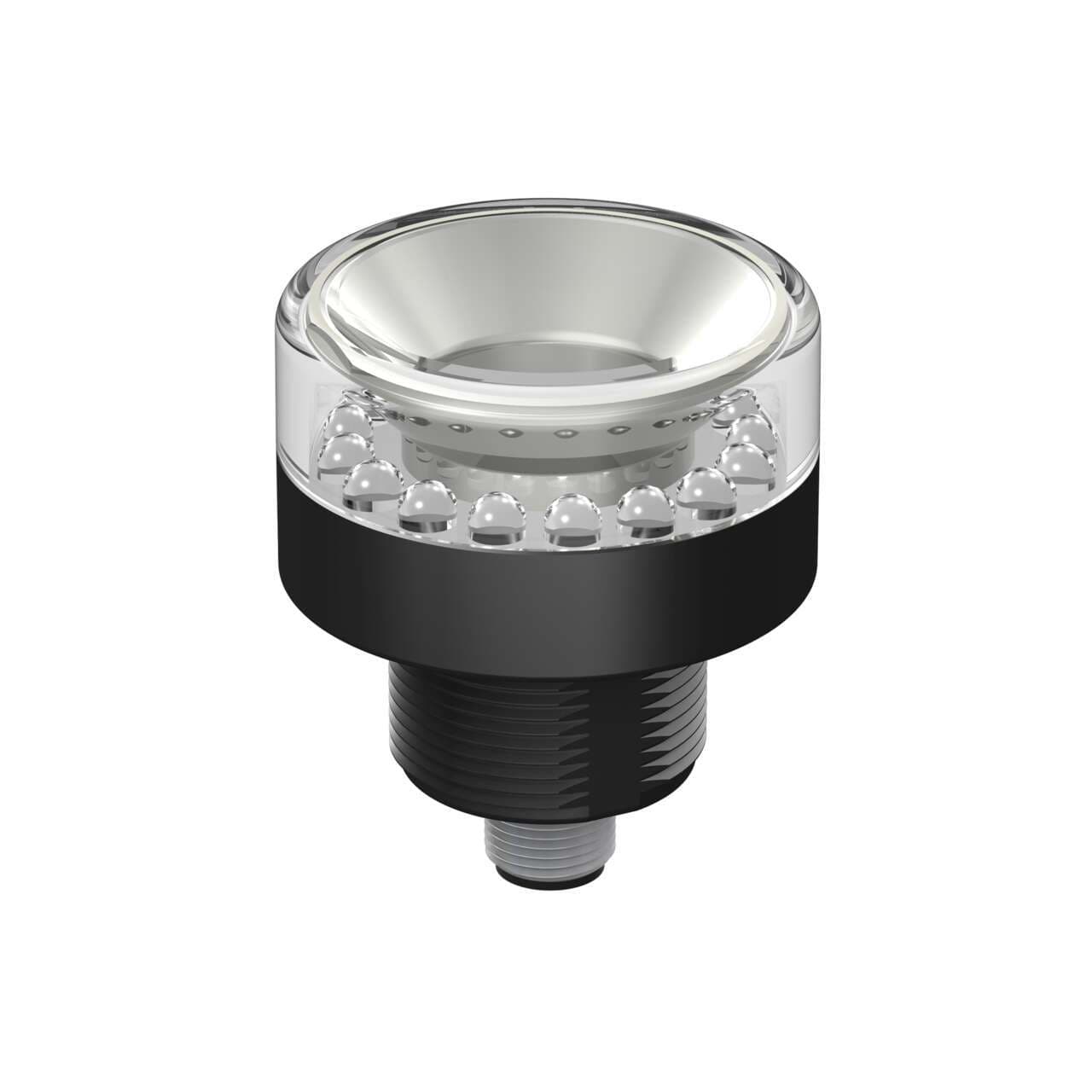

Banner K50BCLBXXPQ K50 Beacon EZ-LIGHT: 1-Color Perimeter & Top View; I/O compatible; Voltage: 12-30 V dc; Housing: Polycarbonate; IP69K; Input: PNP; Colors: Blue; 4-pin M12 Integral QD
Banner

Part#:K50BCLBXXPQ

Manufacturer:Banner

Alt. Part#:93863

Product Lifecycle:Active

Get a quick Quote!

K50 Beacon EZ-LIGHT: 1-Color Perimeter & Top View; I/O compatible; Voltage: 12-30 V dc; Housing: Polycarbonate; IP69K; Input: PNP; Colors: Blue; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K50BCLBXXPQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight136.0776 g
  • Country Of OriginMX
  • Housing Style
    Base Mount - Flat Window
  • Connection
    Integral QD
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 60.0
  • Feature: Washdown Rated
    Yes
  • Mounting Thread
    M30 x 1.5
  • Color Option 1
    Blue
  • Max Input Response Time (ms)
    7
  • Primary Window Material
    Polycarbonate Clear
  • Wireless
    No
  • Color Technology
    Standard LED
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • I/O Block Compatible
    Yes
  • Feature: Hazardous Area
    No
  • Number of Colors / Segments
    1
  • Animation Option 1
    Solid On
  • Environmental Rating
    IP67; IP69
  • Feature: Audible
    No
  • Indication
    Yes
  • Max Current Color (mA)
    160
  • Min Op. Temperature (°C)
    -40
  • Feature: Quick Disconnect
    Yes
  • Power
    DC
  • Quick Disconnect Type
    M12 (Euro)
  • NEMA Type and UL Type Rating
    NEMA 4X, 13
  • Feature: Chemical Resistant
    No
  • Product Size (mm)
    50
  • Number of Input Pins/Conductors
    4
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Indication Intensity
    High Brightness & Daylight Visible
  • Primary Housing Material
    Polycarbonate
  • Input Type
    PNP
  • Max Op. Temperature (°C)
    50
  • Multi-Color Device
    Single Color On
  • Power Source
    DC
  • Supply Voltage
    12-30 V dc
  • Primary Housing Color
    Black
  • IO Link
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

K50BCLBXXPQ Description

Banner Engineering K50BCLBXXPQ is a high-intensity industrial LED light beacon from the EZ-LIGHT Beacons series, designed for both perimeter and top view lighting. This beacon features a 1-tier, 1-color blue LED illumination housed in a black casing. The round flat window is made of clear polycarbonate (PC), with the base also constructed from polycarbonate (PC) and a polyurethane (PUR) cable sheath. It comes pre-wired with a 2ft / 24" / 60cm PUR pigtail terminated with a 4-pin M12 Euro-style quick disconnect (QD) connector. The beacon operates on a supply voltage of 12Vdc-30Vdc (24Vdc nominal) and can be mounted via surface/base pole M30 / 1/2" NPSM thread. With a cap diameter of 50mm / 2", it is designed to operate in ambient air temperatures ranging from -40°C to +50°C. This beacon is rated for IP67, IP69K, NEMA 4X, and NEMA 13, ensuring protection against various environmental conditions. It has a current consumption of 160mA and includes 1 x digital input (12-30Vdc; PNP) for color control.

Related documents K50BCLBXXPQ Specs

K50BCLBXXPQ 155509.pdf

1-year warranty

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

By purchasing this item, you agree to the Terms & Conditions

Quotebeam is NOT an authorized distributor of Banner

Shipping and Delivery Worldwide

calculate costs and time

Secure Payment Processing

with money back guarantee

1 year warranty

on all parts

Responsive Customer Support

we're here to help!

Need more details?

Feel free to chat with us or check our FAQ

Banner Disclaimer:

The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Banner Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Banner, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
