K50BLGA230Q Banner Electronic Components

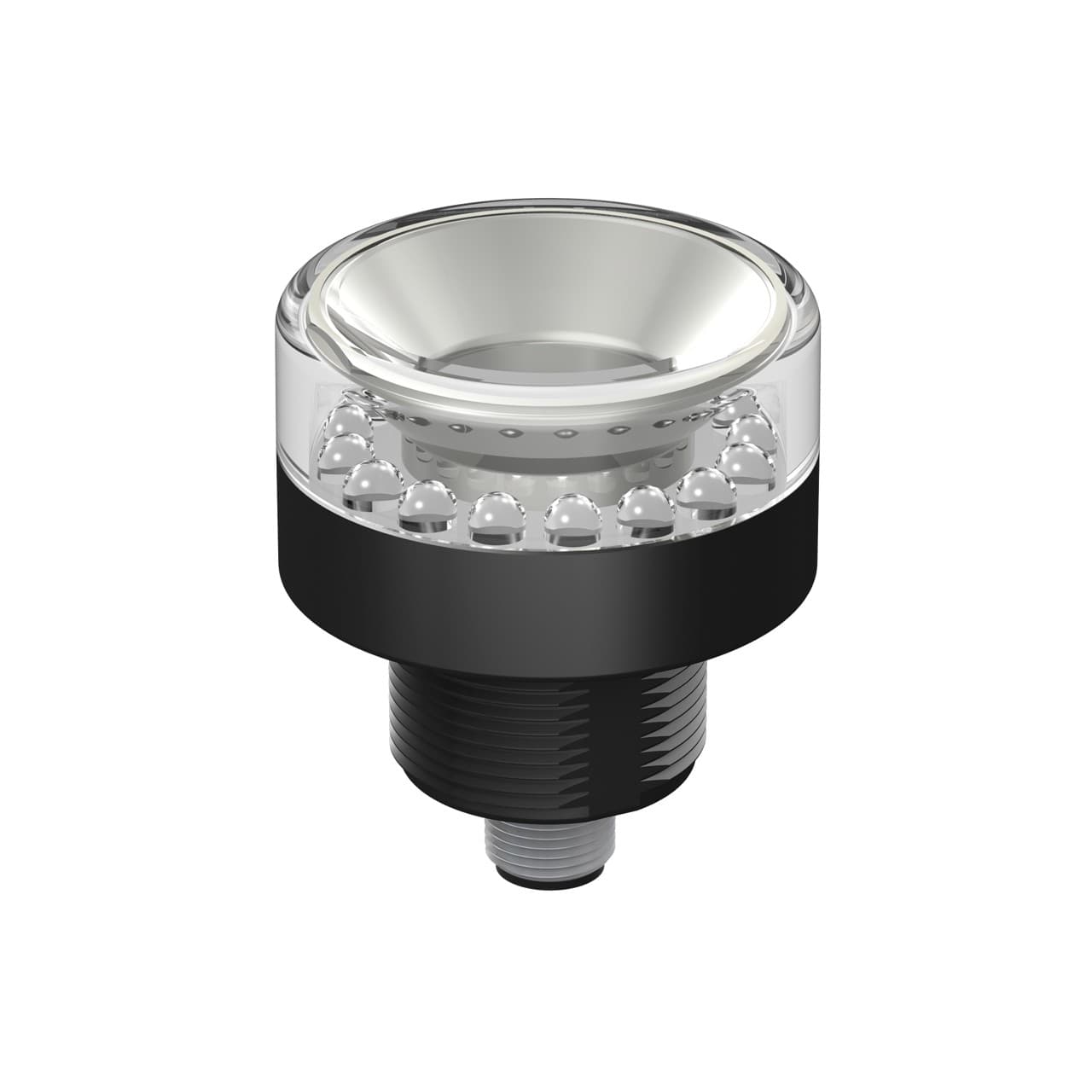

Banner K50BLGA230Q Banner Engineering K50BLGA230Q is a high-intensity industrial LED light beacon from the EZ-LIGHT Beacons series. This beacon features a perimeter view indicator with a 1-tier, 3-color G/B/W color pattern LED illumination housed in a black casing. The round flat window is made from clear polycarbonate (PC), as is the base, ensuring durability. It is designed for easy connection, pre-equipped with a 5-pin M12 Euro-style QD connector. The K50BLGA230Q operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal, and can be mounted via surface, base pole M30, or 1/2" NPSM thread. With a cap diameter of 50mm / 2 inches, it is designed to operate in ambient air temperatures ranging from -40°C to +50°C. This beacon is protected to IP67, IP69K, NEMA 4X, and NEMA 13 standards, indicating a high degree of protection against dust, water, and corrosion. It has a current consumption of 85mA and includes 3 x digital inputs (12-30Vdc; PNP) for color control.
Banner

Part#:K50BLGA230Q

Manufacturer:Banner

Product Lifecycle:Active

Get a quick Quote!

Banner Engineering K50BLGA230Q is a high-intensity industrial LED light beacon from the EZ-LIGHT Beacons series. This beacon features a perimeter view indicator with a 1-tier, 3-color G/B/W color pattern LED illumination housed in a black casing. The round flat window is made from clear polycarbonate (PC), as is the base, ensuring durability. It is designed for easy connection, pre-equipped with a 5-pin M12 Euro-style QD connector. The K50BLGA230Q operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal, and can be mounted via surface, base pole M30, or 1/2" NPSM thread. With a cap diameter of 50mm / 2 inches, it is designed to operate in ambient air temperatures ranging from -40°C to +50°C. This beacon is protected to IP67, IP69K, NEMA 4X, and NEMA 13 standards, indicating a high degree of protection against dust, water, and corrosion. It has a current consumption of 85mA and includes 3 x digital inputs (12-30Vdc; PNP) for color control.

About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K50BLGA230Q Banner price in the box on the right side or send a quick quote.

Product Details

  • Primary Housing Material
    Polycarbonate
  • Number of Input Pins/Conductors
    3
  • NEMA Type and UL Type Rating
    NEMA 4X, 13
  • Feature: Audible
    No
  • Power Source
    DC or AC
  • Color Option 1
    Green
  • Max Input Response Time (ms)
    0.5
  • Feature: Washdown Rated
    Yes
  • Pro-Editor Compatible (Discrete)
    No
  • Mounting Thread
    M30 x 1.5
  • Connection
    Integral QD
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 60.0
  • Indication Intensity
    High Brightness & Daylight Visible
  • Cable Length (m)
    9
  • Animation Option 1
    Solid On
  • Max Op. Temperature (°C)
    50
  • Feature: Quick Disconnect
    Yes
  • Indication
    Yes
  • Color Technology
    Standard LED
  • Environmental Rating
    IP67; IP69
  • Feature: Chemical Resistant
    No
  • Power
    DC or AC
  • Product Size (mm)
    50
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Feature: Hazardous Area
    No
  • Wireless
    No
  • Housing Style
    Base Mount - Flat Window
  • Max Current Color (mA)
    20
  • Primary Housing Color
    Black
  • Multi-Color Device
    Single Color On
  • Number of Colors / Segments
    1
  • Input Type
    AC
  • Primary Window Material
    Polycarbonate Clear
  • Modbus RTU
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Supply Voltage
    100-250 V ac/90-240 V dc
  • Min Op. Temperature (°C)
    -40
  • IO Link
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents K50BLGA230Q Specs

K50BLGA230Q K50 Beacon Daylight-Visible -- Datasheet-1630954270646.pdf
K50BLGA230Q K50B QD-1630954270642.pdf
K50BLGA230Q K50B QD-1630954270640.stp
