K50BCLS1XWXP Banner Electronic Components
Part#:K50BCLS1XWXP
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

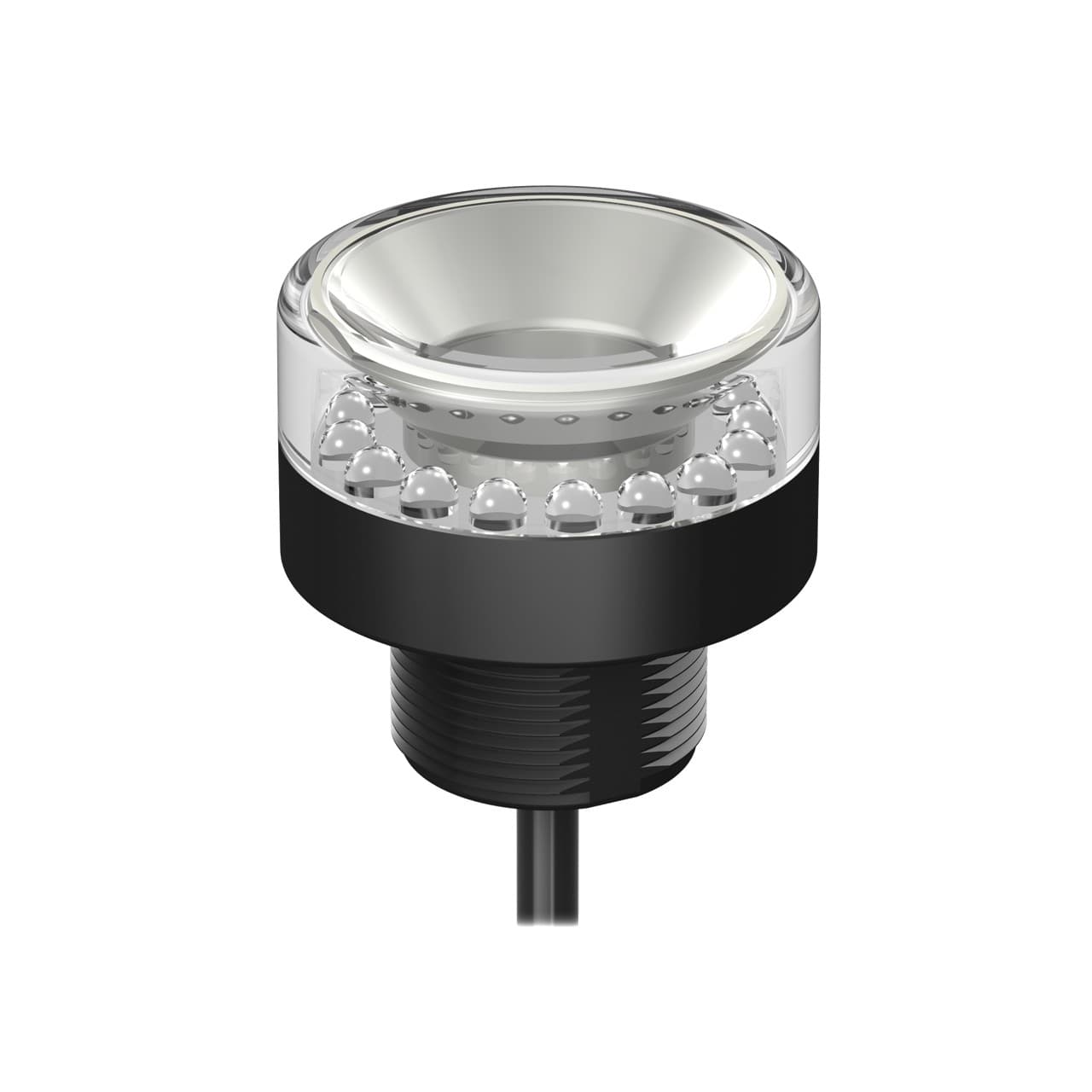

Banner Engineering K50BCLS1XWXP is a single-color high-intensity industrial LED light strobing beacon, part of the EZ-LIGHT Beacons series. It features perimeter and top view lighting with 1-tier red LED illumination, housed in a black round flat window design. The beacon's window and base are made from clear and black polycarbonate (PC), respectively. It is pre-wired with a 6" / 15cm pigtail that terminates with a 5-pin M12 Euro-style quick disconnect (QD) connector. This beacon operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and can be mounted via surface or base pole with M30 or 1/2" NPSM thread options. The cap diameter is 50mm / 2". It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67, IP69K, NEMA 4X, and NEMA 13. The current consumption is 160mA, and it includes 1 x digital input (12-30Vdc; PNP) for color control.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50BCLS1XWXP Banner price in the box on the right side or send a quick quote.
Product Details
- Housing Style Base Mount - Flat Window
- Max Current Color (mA) 160
- Min Op. Temperature (°C) -40
- Cable Length (m) 2
- Color Technology Standard LED
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 49.0
- Feature: Washdown Rated Yes
- IO Link No
- Number of Colors / Segments 1
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Supply Voltage 12-30 V dc
- Input Type PNP
- Environmental Rating IP67; IP69
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Quick Disconnect No
- Modbus RTU No
- Primary Housing Material Polycarbonate
- Power DC
- Animation Option 1 Multiple
- Mounting Thread M30 x 1.5
- Color Option 1 White
- Number of Input Pins/Conductors 5
- Max Input Response Time (ms) 0.25
- NEMA Type and UL Type Rating NEMA 4X, 13
- Indication Yes
- Connection Cable
- Primary Housing Color Black
- Multi-Color Device Single Color On
- Power Source DC
- Product Size (mm) 50
- Wire Selectable Function Flashing
- Primary Window Material Polycarbonate Clear
- Indication Intensity High Brightness & Daylight Visible
- Pro-Editor Compatible (Discrete) No
- Feature: Hazardous Area No
- Wireless No
- Max Op. Temperature (°C) 50
- Feature: Chemical Resistant No
- Feature: Audible No
