K50BCLGRXPQ Banner Pick-to-Light Sensors
Part#:K50BCLGRXPQ
Manufacturer:Banner
Alt. Part#:18346
Product Lifecycle:Active
Get a quick Quote!
K50 Beacon EZ-LIGHT: 2-Color Perimeter & Top View; Voltage: 12-30 V dc; Housing: Polycarbonate; IP69K; Input: PNP; Colors: Green Red; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50BCLGRXPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight136.0776 g
- Country Of OriginMX
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Number of Input Pins/Conductors 4
- Min Op. Temperature (°C) -40
- Indication Intensity High Brightness & Daylight Visible
- Indication Yes
- Connection Integral QD
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- IO Link No
- Mounting Thread M30 x 1.5
- Quick Disconnect Type M12 (Euro)
- Environmental Rating IP67; IP69
- Feature: Hazardous Area No
- Product Size (mm) 50
- Supply Voltage 12-30 V dc
- NEMA Type and UL Type Rating NEMA 4X, 13
- Modbus RTU No
- Housing Style Base Mount - Flat Window
- Max Current Color (mA) 95
- Primary Housing Color Black
- Multi-Color Device Single Color On
- Power DC
- Primary Housing Material Polycarbonate
- Color Technology Standard LED
- Color Option 2 Red
- Input Type PNP
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 60.0
- Primary Window Material Polycarbonate Clear
- Feature: Audible No
- Pro-Editor Compatible (Discrete) No
- Power Source DC
- Animation Option 1 Solid On
- Max Input Response Time (ms) 7
- Feature: Washdown Rated Yes
- Wireless No
- Number of Colors / Segments 2
- Color Option 1 Green
- Max Op. Temperature (°C) 50
- Feature: Chemical Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K50BCLGRXPQ Description

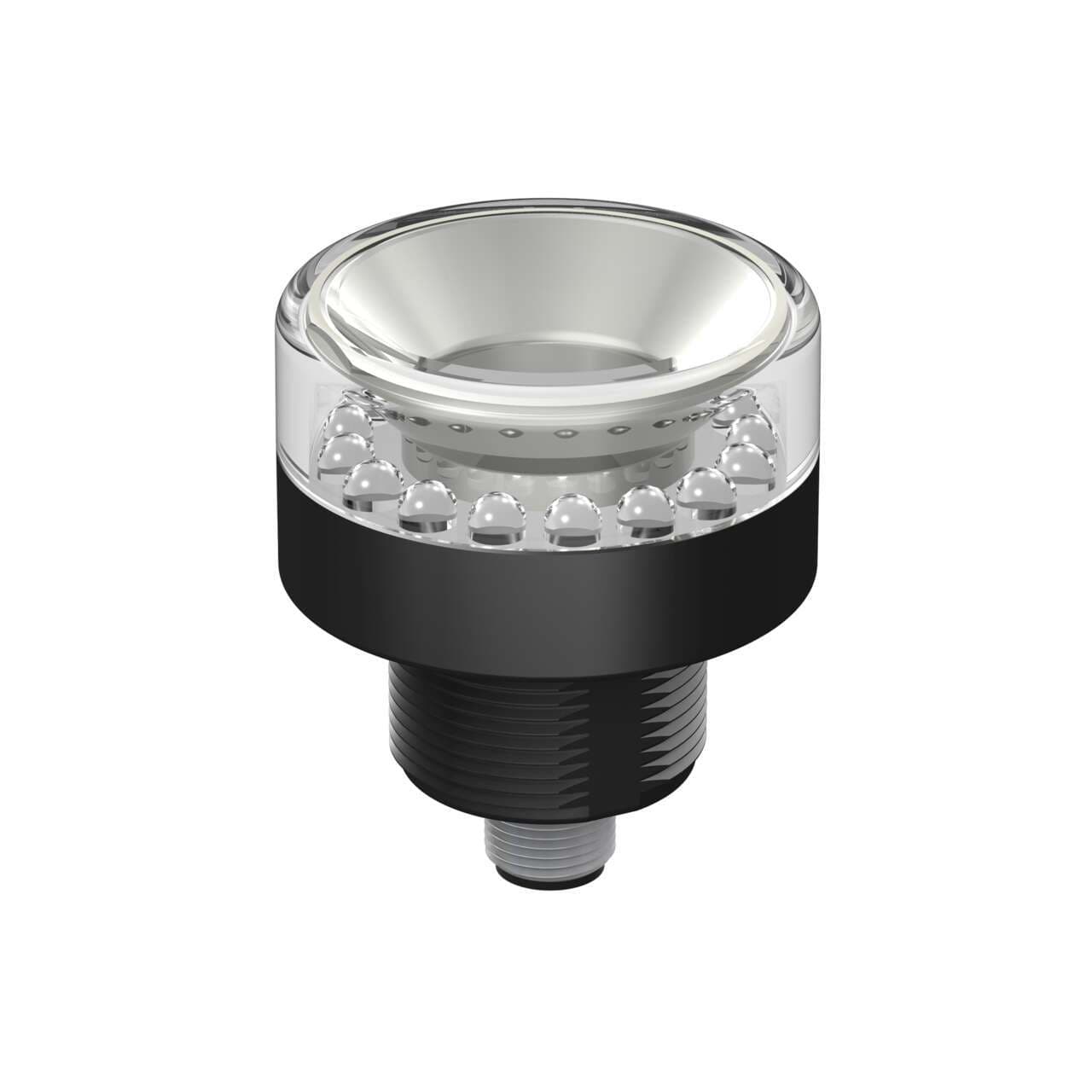

Banner Engineering K50BCLGRXPQ is a high-intensity industrial LED light beacon from the EZ-LIGHT Beacons series. This beacon features perimeter and top view lighting with a 1-tier, 2-color G/R color pattern LED illumination. It has a black housing with a round flat window made from clear polycarbonate (PC), and the base is also constructed from polycarbonate (PC). It is pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads for connectivity. The supply voltage required for operation is 12Vdc-30Vdc, with 24Vdc being nominal. For mounting, it offers surface/base pole options with M30 / 1/2" NPSM thread compatibility. The beacon has a 50mm / 2" cap diameter and can operate in ambient air temperatures ranging from -40°C to +50°C. It is designed with a degree of protection rated at IP67, IP69K, NEMA 4X, and NEMA 13, ensuring durability in various environments. The current consumption is 95mA, and it includes 2 x digital inputs (12-30Vdc; PNP) for color control.
Related documents K50BCLGRXPQ Specs
