K50BLGA120Q Banner Electronic Components

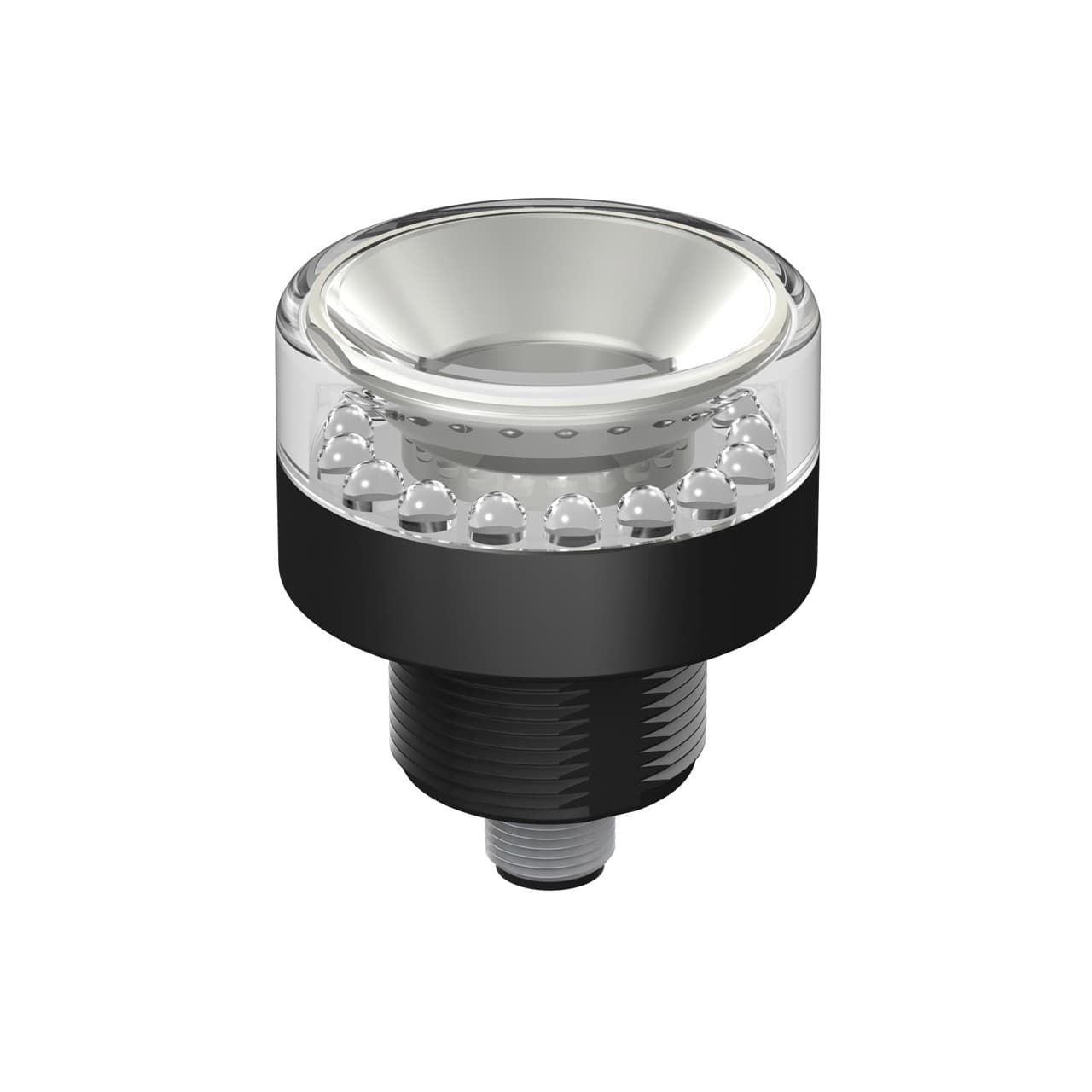

Banner K50BLGA120Q Banner Engineering K50BLGA120Q is a high-intensity industrial LED light beacon from the EZ-LIGHT Beacons series. This beacon features perimeter and top view lighting with a 1-tier, 1-color yellow LED illumination housed in a black casing. The round flat window is made from clear polycarbonate (PC), as is the base, ensuring durability. It is designed for easy connection, pre-equipped with a 4-pin M12 Euro-style QD connector. The beacon operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and has a current consumption of 160mA. It offers versatile mounting options including surface, base pole M30, and 1/2" NPSM thread, with a cap diameter of 50mm / 2". The K50BLGA120Q is built to withstand ambient air temperatures ranging from -40°C to +50°C and offers a high degree of protection with ratings of IP67, IP69K, NEMA 4X, and NEMA 13. Additionally, it features 1 x digital input (12-30Vdc; PNP) for color control.
Banner

Part#:K50BLGA120Q

Manufacturer:Banner

Product Lifecycle:Active

Get a quick Quote!

Banner Engineering K50BLGA120Q is a high-intensity industrial LED light beacon from the EZ-LIGHT Beacons series. This beacon features perimeter and top view lighting with a 1-tier, 1-color yellow LED illumination housed in a black casing. The round flat window is made from clear polycarbonate (PC), as is the base, ensuring durability. It is designed for easy connection, pre-equipped with a 4-pin M12 Euro-style QD connector. The beacon operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and has a current consumption of 160mA. It offers versatile mounting options including surface, base pole M30, and 1/2" NPSM thread, with a cap diameter of 50mm / 2". The K50BLGA120Q is built to withstand ambient air temperatures ranging from -40°C to +50°C and offers a high degree of protection with ratings of IP67, IP69K, NEMA 4X, and NEMA 13. Additionally, it features 1 x digital input (12-30Vdc; PNP) for color control.

About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K50BLGA120Q Banner price in the box on the right side or send a quick quote.

Product Details

  • Indication
    Yes
  • Cable Length (m)
    2
  • Max Input Response Time (ms)
    0.5
  • Feature: Washdown Rated
    Yes
  • Multi-Color Device
    Single Color On
  • IO Link
    No
  • Mounting Thread
    M30 x 1.5
  • Animation Option 1
    Solid On
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 60.0
  • Modbus RTU
    No
  • Housing Style
    Base Mount - Flat Window
  • Supply Voltage
    85-130 V ac/75-120 V dc
  • Min Op. Temperature (°C)
    -40
  • Feature: Quick Disconnect
    Yes
  • Power
    DC or AC
  • Connection
    Integral QD
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Indication Intensity
    High Brightness & Daylight Visible
  • Primary Housing Material
    Polycarbonate
  • Max Current Color (mA)
    16
  • Environmental Rating
    IP67; IP69
  • Feature: Audible
    No
  • Power Source
    DC or AC
  • Color Technology
    Standard LED
  • NEMA Type and UL Type Rating
    NEMA 4X, 13
  • Feature: Hazardous Area
    No
  • Wireless
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Number of Input Pins/Conductors
    3
  • Primary Window Material
    Polycarbonate Clear
  • Pro-Editor Compatible (Discrete)
    No
  • Product Size (mm)
    50
  • Color Option 1
    Green
  • Primary Housing Color
    Black
  • Number of Colors / Segments
    1
  • Input Type
    AC
  • Max Op. Temperature (°C)
    50
  • Feature: Chemical Resistant
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents K50BLGA120Q Specs

K50BLGA120Q K50B QD-1630954324855.stp
K50BLGA120Q K50B QD-1630954324849.pdf
K50BLGA120Q K50 Beacon Daylight-Visible -- Datasheet-1630954324852.pdf
