K50BLR1XYXP Banner Pick-to-Light Sensors
Part#:K50BLR1XYXP
Manufacturer:Banner
Alt. Part#:19785
Product Lifecycle:Active
Get a quick Quote!
K50 Beacon EZ-LIGHT: 1-Color Rotating; Voltage: 12-30 V dc; Housing: Polycarbonate; IP69K; Input: PNP; Colors: Yellow; 2 m (6.5 ft) Integral Cable
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50BLR1XYXP Banner price in the box on the right side or send a quick quote.
Product Details
- Weight158.7572 g
- Country Of OriginMX
- Mounting Thread M30 x 1.5
- Color Option 1 Yellow
- Primary Housing Color Black
- Modbus RTU No
- Primary Housing Material Polycarbonate
- Input Type PNP
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 49.0
- Feature: Quick Disconnect No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Number of Input Pins/Conductors 5
- Supply Voltage 12-30 V dc
- Max Input Response Time (ms) 0.25
- Power DC
- IO Link No
- Feature: Chemical Resistant No
- Product Size (mm) 50
- Power Source DC
- Animation Option 1 Multiple
- Wire Selectable Function Rotating
- Max Op. Temperature (°C) 50
- Feature: Hazardous Area No
- Feature: Audible No
- Pro-Editor Compatible (Discrete) No
- Indication Yes
- Connection Cable
- NEMA Type and UL Type Rating NEMA 4X, 13
- Primary Window Material Polycarbonate Clear
- Wireless No
- Min Op. Temperature (°C) -40
- Indication Intensity High Brightness & Daylight Visible
- Housing Style Base Mount - Flat Window
- Color Technology Standard LED
- Environmental Rating IP67; IP69
- Multi-Color Device Single Color On
- Number of Colors / Segments 1
- Max Current Color (mA) 140
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Washdown Rated Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K50BLR1XYXP Description

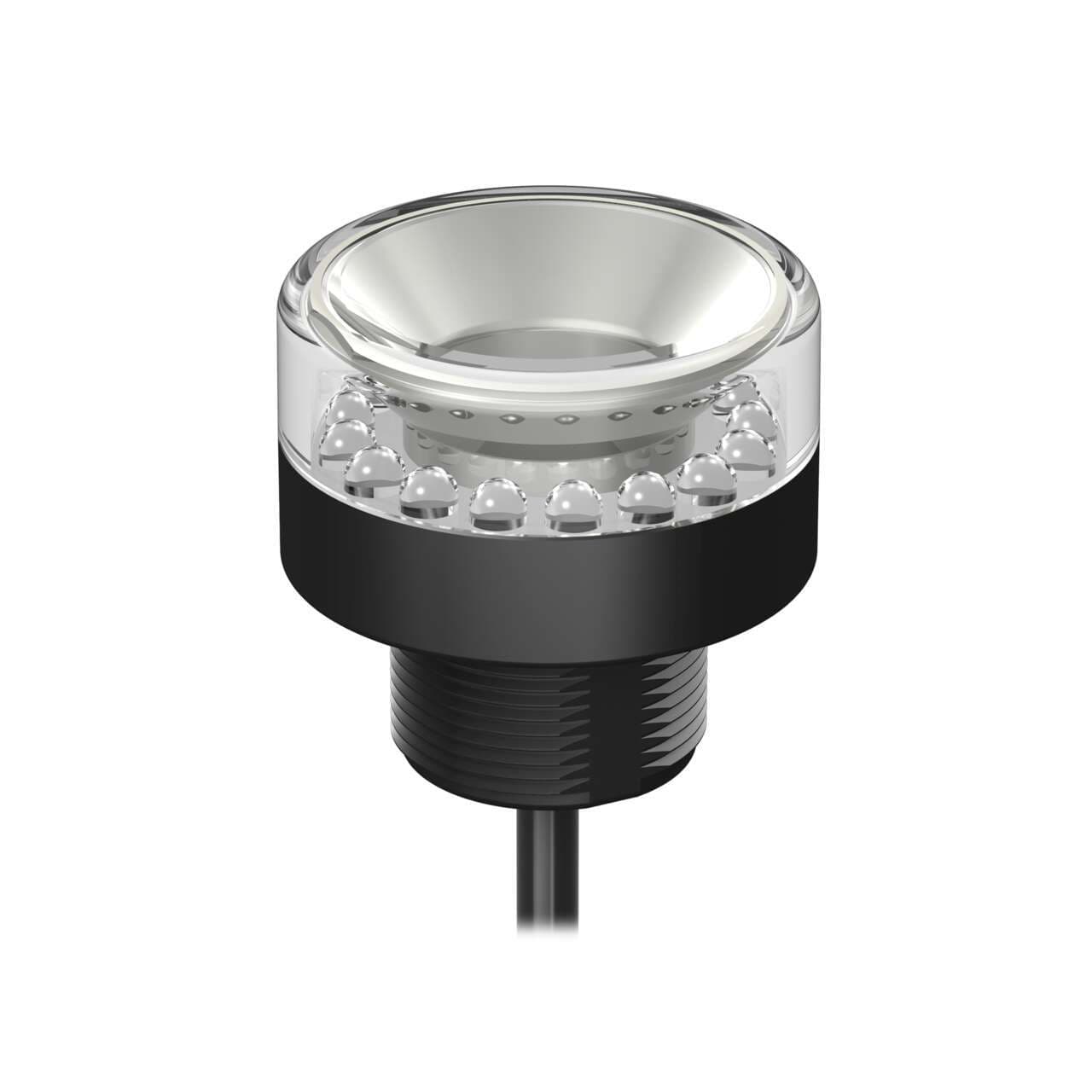

Banner Engineering K50BLR1XYXP is a single-color high-intensity industrial LED light rotating beacon, part of the EZ-LIGHT Beacons series. This beacon features a perimeter view indicator with a 1-tier, 1-color white LED illumination housed in a black casing. The round flat window is made from clear polycarbonate (PC), and the base is also constructed from polycarbonate (PC), ensuring durability. It is pre-equipped with a 5-pin M12 Euro-style QD connector for easy connection. The beacon operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal, and can be mounted via surface/base pole M30 / 1/2" NPSM thread. With a cap diameter of 50mm / 2 inches, it is designed to operate in ambient air temperatures ranging from -40°C to +50°C. This beacon is rated for IP67, IP69K, NEMA 4X, and NEMA 13, indicating a high degree of protection against ingress. It has a current consumption of 140mA and includes 1 x digital input (12-30Vdc; PNP) for color control.
