K50BCLXBXP Banner Pick-to-Light Sensors
Part#:K50BCLXBXP
Manufacturer:Banner
Alt. Part#:18343
Product Lifecycle:Active
Get a quick Quote!
K50 Beacon EZ-LIGHT: 1-Color Perimeter & Top View; Voltage: 12-30 V dc; Housing: Polycarbonate; IP69K; Input: PNP; Colors: Blue; 2 m (6.5 ft) Integral Cable
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50BCLXBXP Banner price in the box on the right side or send a quick quote.
Product Details
- Weight249.4756 g
- Country Of OriginUS
- Power DC
- Color Option 1 Blue
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 49.0
- Feature: Audible No
- Cable Length (m) 0.5
- Animation Option 1 Solid On
- NEMA Type and UL Type Rating NEMA 4X, 13
- Feature: Chemical Resistant No
- Power Source DC
- Product Size (mm) 50
- Max Input Response Time (ms) 7
- Feature: Washdown Rated Yes
- Modbus RTU No
- Indication Yes
- Connection Cable
- Max Op. Temperature (°C) 50
- Multi-Color Device Single Color On
- Housing Style Base Mount - Flat Window
- Color Technology Standard LED
- Environmental Rating IP67; IP69
- Indication Intensity High Brightness & Daylight Visible
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Max Current Color (mA) 160
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- IO Link No
- Primary Housing Material Polycarbonate
- Number of Input Pins/Conductors 4
- Min Op. Temperature (°C) -40
- Feature: Quick Disconnect No
- Mounting Thread M30 x 1.5
- Input Type PNP
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Number of Colors / Segments 1
- Supply Voltage 12-30 V dc
- Primary Window Material Polycarbonate Clear
- Wireless No
- Feature: Hazardous Area No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K50BCLXBXP Description

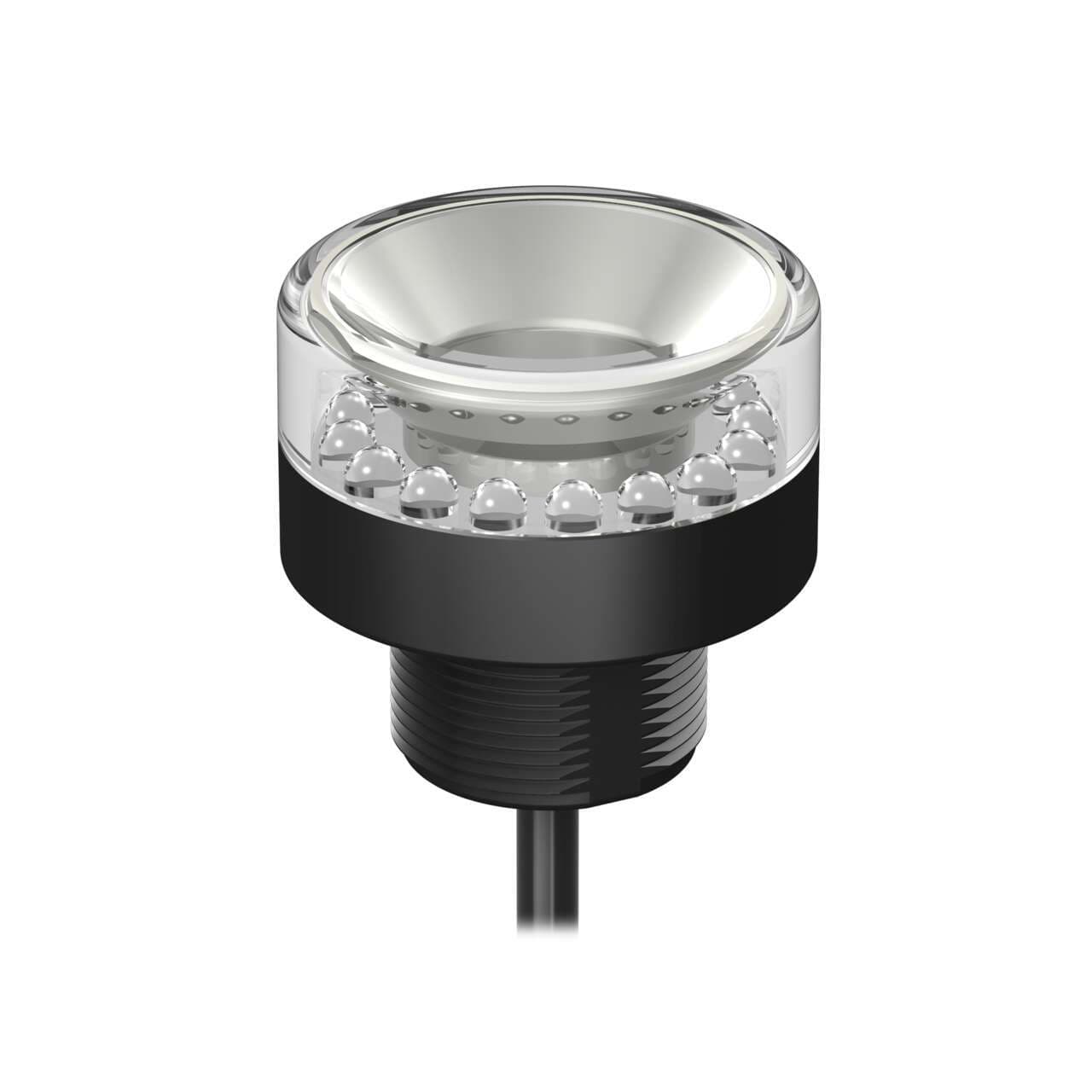

Banner Engineering K50BCLXBXP is a high-intensity industrial LED light beacon from the EZ-LIGHT Beacons series. This beacon features a design with flash input perimeter and top view 1-tier 1-color Blue LED illumination, housed in a black casing. The round flat window is made of clear polycarbonate, and the base is constructed from polycarbonate as well. It is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The K50BCLXBXP operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal. It offers versatile mounting options including surface, base pole M30, and 1/2" NPSM thread, accommodating a 50mm / 2" cap diameter. Designed to operate in ambient air temperatures ranging from -40 to +50°C, it boasts a degree of protection rated at IP67 and IP69K. Additionally, it includes 1 x digital input (12-30Vdc; PNP) for color control.
